mikromakro®-mixing means the systematic use of static mixers of different geometries and sizes. Basically, a rough but well distributed pre-homogenisation is achieved in the makro-mixer, while a perfect homogenisation is realised in the following mikro-mixer. Fluitec CSE-X® mixers are well established and proved for industrial mixing processes of highest demands. Standard CSE-X® mixers consist out of 4 to 12 bars. The final design, the arrangement and the sizes of mikromakro®
mixing elements, however, are customized to its individual application.
|
|
In all Kenics® KM Series Static Mixers, a patented helical mixing element directs the flow of material radially toward the pipe walls and back to the center. Additional velocity reversal and flow division results from combining alternating right- and left-hand elements, thus increasing mixing efficiency. All material is continuously and completely mixed, eliminating radial gradients in temperature, velocity and material composition.
|
|
|
Our standard, pre-engineered thermoprofiler® static mixers provide cost-efficient mixing of two least fluid streams. Our custom designed blendrex® mixing elements continuously split the delivered flow, remix it, homogenize it, and symmetrically set the melt’s temperature gradients to assure even mixing, uniform additive dispersion, and temperature profile consistency.
|
|
|
Static mixers are well established and widespread in all fields of chemical process technology. It is characteristically for static mixers, that, in contrast to dynamic mixers, only the media to be mixed are in motion. The liquids or gases are mixed by pump energy only, while the geometrically strong defined Fluitec mixing elements in the tube remain in position.
|
|
|
|
|
|
The mixer/heat-exchanger CSE-XR was developed and patented by Fluitec AG. It is the most important invention in the static mixing technology of the last 20 years.
The CSE-XR is mainly used for temperature conditioning of highly viscous liquids at laminar flow. A strongly defined and well controlled homogeneity is guaranteed in any situation as well, as a very narrow residence time distribution. The reason for this excellent performance is its geometry, which is consequently based on the geometry of the most efficient static mixer type, the CES-X.
The very high radial mixing efficiency constantly ensures an intensive flow against the internal heat transferring tubes, thus allowing a
the compact design of this device.
Multitube heat exchangers are often not dedicated for scale-ups. Problems occur mainly in cooling processes at laminar flow conditions, when the product can "freeze" in particular tubes, due to its increased viscosity at lower temperatures. Uncontrolled residence time distribution and maldistribution are thereby leading to a bad process control.
Monotube heat exchangers (tubes with a double shell) can be built much smaller, if using static mixers. The mixing elements are improving the surface renewal rate significantly.
|
|
Static mixers are well established and widespread in all fields of chemical process technology. It is characteristically for static mixers, that, in contrast to dynamic mixers, only the media to be mixed are in motion. The liquids or gases are mixed by pump energy only, while the geometrically strong defined Fluitec mixing elements in the tube remain in position.
Among others, static mixing elements can be applied in the following fields of application:
mixing of pumpable fluids
dispersing and emulsifying of insoluble liquids (cleavage)
mixing of reactive liquids
mixing and homogenisation of polymers (hot-melts)
contacting of gas and liquid phases
mixing of gases
tempering of viscous media
In contrast to empty tubes, static mixer possess a very high efficiency for self-cleaning.
Wear of static mixers is negligible due to the lack of any moving parts.
|
|
Static mixers are well established and widespread in all fields of chemical process technology. It is characteristically for static mixers, that, in contrast to dynamic mixers, only the media to be mixed are in motion. The liquids or gases are mixed by pump energy only, while the geometrically strong defined Fluitec mixing elements in the tube remain in position.
Among others, static mixing elements can be applied in the following fields of application:
mixing of pumpable fluids
dispersing and emulsifying of insoluble liquids (cleavage)
mixing of reactive liquids
mixing and homogenisation of polymers (hot-melts)
contacting of gas and liquid phases
mixing of gases
tempering of viscous media
In contrast to empty tubes, static mixer possess a very high efficiency for self-cleaning.
Wear of static mixers is negligible due to the lack of any moving parts.
|
|
For the Verdermix mixers many applications are already so well-known that research does not have to be more than at most a very small part of the quotation phase.
Based on this, we have developed our standard for the manufacture of Verdermix agitators and mixers. Consequently, our customers can benefit from sound and timely advice, based on our vast experience and ample knowlegde of many processes; fully computerised deliveries from stock; modular construction; the use of high quality components and accessories, which are proven to ensure long lifespans under considerably severe circumstances.
Verdermix Static Mixers
Advantages of VERDERMIX static mixers:
- Quick and intensive reaction between the mixable fluids and/or gases
- Easy and simple to install in your piping system.
- Low energy consumption
- No moving parts, negligible maintenance costs and long lifespan
- Low cost
|
|
Inliner Miwers Series 45
Helical element design that creates a distinct pattern of flow splitting, rotating vorticies,
Can be used as stand-alone mixers or in combination with tank/mixer systems
High-efficiency mixing action can reduce chemical consumption
Fast and inexpensive to install and operate
Virtually maintenance-free
No moving parts
Available for quick delivery - usually within 4 weeks
Sizes from 1 to 12 inches/25 to 300 mm
316L stainless steel material of construction
|
|

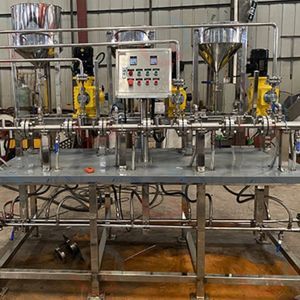

static mixer
For liquid and powder mixing, reaction, extraction, dividing, composition, coloring, emulsification, heat exchange, pH control, neutralization, diffusion.
|
|
Two basic-No Moving Parts- Motionless Mixer designs are offered for use in turbulent and laminar flow mixing applications.
The elements are made of two inclined semi-elliptical plates opposite to each other. The mixing operation is based on the splitting and diverting of input streams. In turbulent flow applications, the elements enhance the random dispersion of substreams so that a unit with six elements is sufficient for most applications.
|
|
| ... products without technical information |
| |
Delivers up to 12 kg (26 lb) of material per minute -
accurately and on-ratio
- Simple, reliable design - tested in the aerospace and transportation industries for 20 years
- Ideal for manufacturers of wind turbine blades
- Repeatable on-ratio dispensing accuracies of ±3 percent reduces material waste and re-work
- Faster production time with dispense rate of up to 12 kg (26 lb) per minute in adhesive paste applications
- Improved capabilities with a dispense rate of up to 6 kg (13 lb) a minute in tooling paste applications
|
|
For Applying:
epoxy resins
polyurethane resins
silicones
Technical Data:
•Stainless steel chassis and working surface
•Rollers
•High precision steel gear pumps
•Three-phase current motor
•Various dispense rate at a mixing ratio of 100 : 100 available (1, 2, 4, 8,15 kg/min)
•Smooth adjustable mixing ratio
•Pressure lines 250 bar, free length 3.000 mm
•Re-circulation mixing block to machine container
•Mixing block with dynamic and static mixing
•Pneumatic mixer drive

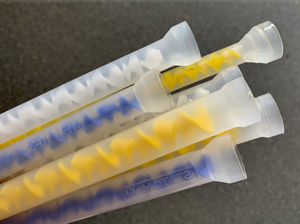

•Disposable static mixers
•Purge of mixing block by use of one component and compressed air
•Trigger at mixing block
•Siemens controller
•Moisture trap
|
|
Delivers up to 12 kg (26 lb) of material per minute -
accurately and on-ratio
- Simple, reliable design - tested in the aerospace and transportation industries for 20 years
- Ideal for manufacturers of wind turbine blades
- Repeatable on-ratio dispensing accuracies of ±3 percent reduces material waste and re-work
- Faster production time with dispense rate of up to 12 kg (26 lb) per minute in adhesive paste applications
- Improved capabilities with a dispense rate of up to 6 kg (13 lb) a minute in tooling paste applications
|
|
For Applying:
epoxy resins
polyurethane resins
silicones
Technical Data:
•Stainless steel chassis and working surface
•Rollers
•High precision steel gear pumps
•Three-phase current motor
•Various dispense rate at a mixing ratio of 100 : 100 available (1, 2, 4, 8,15 kg/min)
•Smooth adjustable mixing ratio
•Pressure lines 250 bar, free length 3.000 mm
•Re-circulation mixing block to machine container
•Mixing block with dynamic and static mixing
•Pneumatic mixer drive
•Disposable static mixers
•Purge of mixing block by use of one component and compressed air
•Trigger at mixing block
•Siemens controller
•Moisture trap
|
|
|
|
