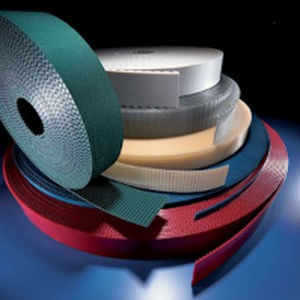

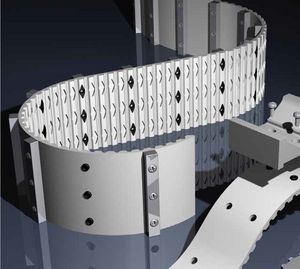

Whenever your product or process demands accurate synchronization of time and distance timing belts of Ammeraal Beltech are the ideal solution.
Ammeraal Beltech has standard solutions for all types of synchronized conveying, linear positioning and power transmission requirements, offering different pitches, tooth shapes, dimensions, cord and covering materials. Special treatments to the belt surface such as grinding, milling or the attachment of cleats are possible. Outstanding mechanical and chemical properties lead to high-performance operation and precision.
|
|
MISUMI provides more than 1 Million mechanical components for the assembly automation. We delivery components europewide in averagely 6-8 days GUARANTEED delivery from the day of purchase, stock items available from 2 days delivery.
MISUMI 24/7 Web Ordering System (WOS) represents a full-fledged e-Commerce solution, which you can use, for the first time, independently from the catalogue in paper form, to configurate MISUMI products, submit quotations and place orders.
For more information about MISUMI, WOS or for ordering a catalogue please visit: www.misumi-europe.com
MISUMI - Precisely Meeting Your Demands
|
|
|
|
|
|

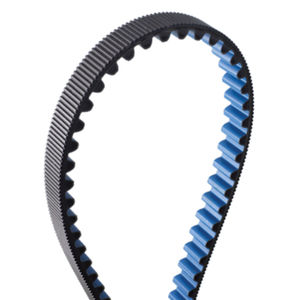

VISION-TECH sleeve cog belts have been designed for power transmission
and locating applications. These belts are made in the form of sleeves.
As they are completely without joints and welding, they are ideal for higher
torque transmissions and greater loads.
High-quality polyurethane combined with steel strands offers VISION-TECH
cog belts many advantages over rubber (neoprene) belts.
VISIONFLEX 'F' SERIES SLEEVE BELTS
VISIONFLEX belts are manufactured in customized lengths,
ranging from 2.5 to 12.5 meters. Our exclusive manufacturing process
offers the advantage of customized length belts, combined with the power
and reliability of closed loop construction.

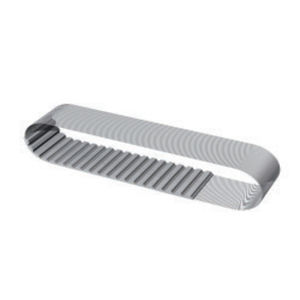

SINCROTECH 'S' SERIES SLEEVE BELTS
SINCROTECH belts are produced in the form of sleeves, then they are cut
lengthwise in customized widths. Available in several pitches and lengths,
they prove extremely useful. For special applications, profiles and other customized
solutions can be designed and welded during
the making of the sleeve itself.
|
|
Identification:
Three part number on the back of the belt indicating belt length, pitch and width.
Construction:
• Trapezoidal tooth form.
• Precisely formed and accurately spaced elastomeric teeth ensure
correct engagement with the pulley grooves.
• Fibreglass tensile cords.
• Nylon fabric cover protects the tooth surfaces.
• Available in standard pitches according to ISO 5296: MXL, XL, L, H, XH, XXH. For MXL sizes and description, see chapter on PowerGrip® MXL on page 29 - 30.
Advantages:
• Power transmission of up to 150 kW and speeds of up to 10000 rpm.
• Peripheral speed up to 80 m/s.
• Positive slip-proof engagement.
• Constant angular velocity.
• Efficiencies up to 99%.
• Low bearing load because of freedom of high tension.
• Maintenance-free continuity of operation.
• Wide range of load capacities and speed ratios.
• Compact design.
• Economical operation.
|
|

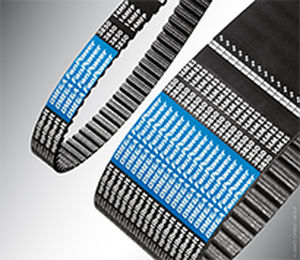

Dual Hi-Performance Pd®
Dual round tooth synchronous belt that transmits power from both side of the belt. Use in variety of applications such as printing presses, business machines, etc.
Open End Pd®
For synchronized applications such as conveying, linear motion or positioning. Goodyear EP Open End Pd® Belts are the economical and trouble-free drive solution.

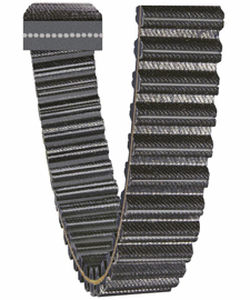

Positive Drive
Traditional trapezoid tooth profile synchronous for drives requiring exact timing. Can also be used as an alternative to problem V-belt and chain drives.
Super Torque Pd®
The original Goodyear-designed Super Torque Pd® belts are designed for high-capacity performance. They are also made of the highest quality materials.
|
|
Synchronous belts
Timing rubber belts represent an excellent system for power transmission. These transmission systems allow :
Synchronized transmission.
High and constant angular speed.
Excellent mechanical performances.
Dimensional stability.
Resistence to high and variable loads.
Low noise.
Low installation tensions.
No lubrication and maintenance.
|
|
Type : Material : Hardness : Surface Treatment RoHS
TBN100MXL019 Neoprene Rubber, Glass Fiber - - Compliant
TBN100MXL025 Neoprene Rubber, Glass Fiber - - Compliant
TBN100MXL037 Neoprene Rubber, Glass Fiber - - Compliant
TBN100MXL050 Neoprene Rubber, Glass Fiber - - Compliant
TBN101MXL019 Neoprene Rubber, Glass Fiber - - Compliant
TBN101MXL025 Neoprene Rubber, Glass Fiber - - Compliant
TBN101MXL037 Neoprene Rubber, Glass Fiber - - Compliant
TBN101MXL050 Neoprene Rubber, Glass Fiber - - Compliant
TBN102MXL019 Neoprene Rubber, Glass Fiber - - Compliant
|
|

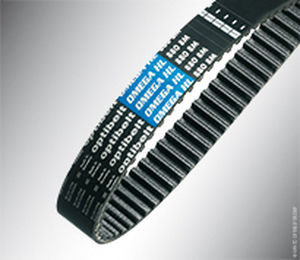

optibelt ALPHA linear for linear drives
Optibelt ALPHA linear are extruded open ended timing
belts with tension cords parallel to the belt edges.
Application is mainly in the linear technology area.
|
|

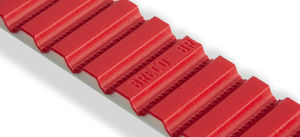

Trapezoidal, heatweldable, double material belt, reinforced by Kevlar cables for tangential drive; load transfer; power transmission.
HIGH PERFORMANCE:
- very strong load capacity in 17x11 150kg at 1%
- low lengthening
- no need to lag the drums, no slip due to the "corner" effect in the pulleys
- choice of friction factor for the upper side
RELIABILITY - DURABILITY:
- self tracking
- very good abrasion and cut resistance
- flexible winding for notched versions
- thermoplastic, reparable
HYGIENE:
- composition 100% PU, FDA compliance
- easy to clean
- silent operation
RECYCLABLE:
- thermoplastic, recyclable material
- possible to recover used conveyor belts
|
|
Combine The Positive Timing Action of Gears With the Flexibility, Speed and Low Noise Level of Belts
The Browning HPT® Synchronous Belt Drive line offers a wide range of HP and speeds, from very low speeds - 10 RPM or less - to speed well over 5,000 RPM, with horsepower ratings from fractional to more than 200 HP.
Belt Drive Features and Benefits include:
Significantly Quieter Operation
New Parabolic Tooth Profile
Glass Fiber Cord Tension Member
Neoprene Rubber Body
Nylon Facing Fabric
Positive Drive, No Slip
Lower Belt Tensions
No Lubrication Required
Fully Interchangeable With Competitive Types
|
|
Synchronous components ensure an engaged drive that does not slip. Compared with chain drives, the speed range is more than twice as high while retaining high belt efficiency.
Synchronous belts are most suitable for areas when proper maintenance is difficult or where downtime could prove to be extremely expensive.
|
|
| ... products without technical information |
| |
Combine The Positive Timing Action of Gears With the Flexibility, Speed and Low Noise Level of Belts
The Browning HPT® Synchronous Belt Drive line offers a wide range of HP and speeds, from very low speeds - 10 RPM or less - to speed well over 5,000 RPM, with horsepower ratings from fractional to more than 200 HP.
Belt Drive Features and Benefits include:
Significantly Quieter Operation
New Parabolic Tooth Profile
Glass Fiber Cord Tension Member
Neoprene Rubber Body
Nylon Facing Fabric
Positive Drive, No Slip
Lower Belt Tensions
No Lubrication Required
Fully Interchangeable With Competitive Types
|
|
Synchronous components ensure an engaged drive that does not slip. Compared with chain drives, the speed range is more than twice as high while retaining high belt efficiency.
Synchronous belts are most suitable for areas when proper maintenance is difficult or where downtime could prove to be extremely expensive.
|
|
