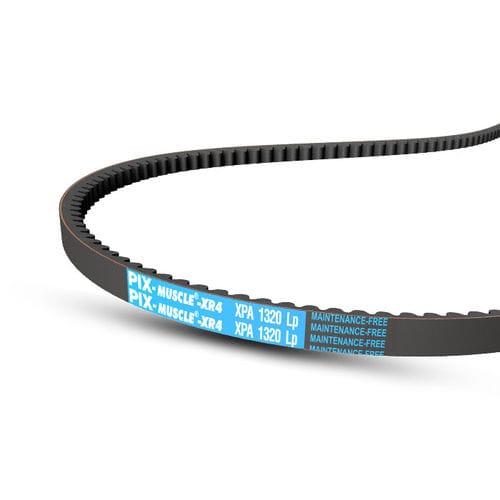

Maintenance-free belt PIX-MUSCLE®-XR4
toothedVrubber

maintenance-free belt
maintenance-free belt
maintenance-free belt
maintenance-free belt
Add to favorites
Compare this product


Characteristics

Type
toothed, V
Material
rubber
Product applications
for heavy-duty applications
Other characteristics
maintenance-free, high-performance, anti-static, raw edge, high-power, abrasion-resistant, high-resistance
Length

Min.: 700 mm
(27.56 in)

Max.: 5,000 mm
(196.85 in)

Width

Min.: 9.7 mm
(0.382 in)

Max.: 22 mm
(0.866 in)

Thickness

8 mm, 10 mm, 14 mm, 18 mm
(0.31 in, 0.39 in, 0.55 in, 0.71 in)

Temperature

Min.: -50 °C
(-58 °F)

Max.: 130 °C
(266 °F)

Description

Features - Superior service life ensuring a higher return on investment. - Extended temperature range from -50°C to +130°C for optimal performance in diverse applications. - Maintenance-free performance resulting in minimal service costs. - Exceptionally high power rating over standard Belts. - Special Belt surface design for superior flexibility and abrasion resistance. - High transmission efficiency up to 98%, resulting in enhanced productivity and reduced cost of ownership. - Special cog design for enhanced flexibility and rapid heat dissipation for improved product performance and operational life. - Complies with ISO 1813 for anti-static properties for enhanced operational safety. - Space-saving potential to allow for compactness in the drive. - REACH and RoHS compliant, enabling a sustainable ecosystem. Constructional Details 1.Specially designed rubber top to provide excellent flexibility and to resist abrasion loss. 2.Specially design EPDM Compound with extreme bonding for superior life. 3.High strength, maintenance-free, EPDM polyester cord for negligible elongation. 4.Special design fibre-loaded EPDM compound for superior power transmission. 5.Specially Engineered cog design with stretchable fabric to enhanced Belt flexibility, crack resistance and accelerated heat dissipation rate.
