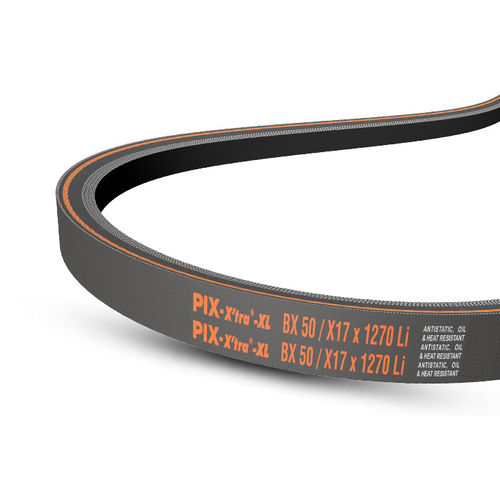

Raw edge power transmission belt PIX-X'tra® XLVrubberagricultural
Add to favorites
Compare this product
Characteristics
- Type
- V
- Material
- rubber
- Product applications
- agricultural
- Sector
- industrial
- Other characteristics
- anti-static, raw edge, high wear resistance, oil-resistant, heat-resistant, laminated
- Length
Min.: 200 mm
(7.87 in)Max.: 5,000 mm
(196.85 in)- Width
Min.: 9.7 mm
(0.382 in)Max.: 32 mm
(1.26 in)- Thickness
Min.: 5.6 mm
(0.22 in)Max.: 23 mm
(0.91 in)- Temperature
Min.: -25 °C
(-13 °F)Max.: 100 °C
(212 °F)
Description
Features
Higher power transmission capacity than wrapped Belts
Special cog design for enhanced flexibility and heat dissipation rate
Suitable for drives using smaller diameter pulleys and high RPM
Anti-static, oil & heat resistant
Maximum Belt linear speed (Classical section: up to 30 m/Sec, Wedge: up to 42 m/Sec, Narrow: up to 45 m/Sec)
Temperature range: -25°C to +100°C
Constructional Details
Special fabric layer
Cushion rubber compound
Specially treated & stabilized polyester cord
Fiber-filled base compound
Moulded cogs for better flexibility
