In steel, aluminium and stainless steel , they are highly resistant and of practical and quick use.
Available in metric thread from ØM3 to ØM12 with cylindrical and hexagonal different sizes, they are used for many applications.
|
|
Keylocking, Thinwall Industrial Style (Metric)
Material: Carbon Steel Inserts - C1215 or equivalent Stainless Steel Insert - 303 Keys - 302
Finish: Carbon Steel Inserts - Parkerized Stainless Steel Inserts - Passivated
Tolerances: Metric ±.25mm |
|
SPIROL offers heat/ultrasonic, molded-in, press-in, expansion, and self-tapping inserts. Our standard inserts have been designed for a broad set of plastic applications. Here is a SPIROL Inserts selection guide to help you with the selection of the appropriate insert for your application.
Series 14 Tapered Hole
Tapered design for tapered holes for ease of location and reduced installation time.
Series 24 Continental and Series 25 Flanged
Designed for tapered hole sizes commonly specified in Continental Europe. The diameters are generally smaller than the Series 14.
Series 19 Straight Hole and Series 20 Flanged
Tapered design for straight holes to yield maximum performance with low radial stress.
Series 27 Standard and Series 28 Flanged
Symmetrical for ease of orientation and enhanced performance designed to minimize radial stresses for thin wall applications.
Series 29 Standard and Series30 Flanged
Symmetrical for ease of orientation and enhanced performance designed to maximize torque and pull out values. |
|
Application:
Threaded insert with bores is a self-tapping fastener for the creation of wear-free, vibration-resistant screw joints with high loading capacity in materials with low shearing strength. It is suitable for installation in the following materials: Aluminum and aluminum alloys; magnesium alloys; Duroplastics, thermoplastics(with the exception of rubber-soft thermoplastics < 100 Shore A).
The head serves as a support for electrical contacts, for simultaneous fixture of several parts; when stress is applied against the head, the pull-through force is significantly increased. |
|
Heli-Coil® inserts are precision formed screw thread coils of stainless steel wire having a diamond shaped cross section.
When they are installed into Heli-Coil® tapped holes, they provide permanent conventional 60' internal screw threads that accommodate any standard bolt or screw.
All related tooling such as STI Taps, hand and power installation tools, gages and tang break-off tools are also available. Typical Applications would include: Automotive,Communication, Aerospace, Military and the Defense industries |
|
Thread technology for HELICOIL® plus, HELICOIL® tangless, KOBSERT® and QUICKSERT®
For metals with low shear resistance, Böllhoff offers an outstanding solution for thread reinforcement: HELICOIL® plus and HELICOIL® tangless thread inserts ensure high-strength, non-wearing, thermally loadable, high-precision threads.
These thread inserts are also suitable for waste recycling and repair of inside threads.
Böllhoff offers corresponding fitting solutions, from handheld fitting tools to fully automatic fitting machines for mass production.
Supplemental to this, there are QUICKSERT® threaded bushings for expansion anchoring and KOBSERT® threaded bushing that is specially tailored to air (gas) and water-tight connections. |
|
Description:

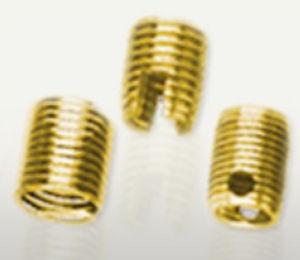

Threaded insert self-tapping with bores and head JY-213/JY-214
Application:
Threaded insert with bores is a self-tapping fastener for the creation of wear-free, vibration-resistant screw joints with high loading capacity in materials with low shearing strength. It is suitable for installation in the following materials: Aluminum and aluminum alloys; magnesium alloys; Duroplastics, thermoplastics(with the exception of rubber-soft thermoplastics < 100 Shore A).
The head serves as a support for electrical contacts, for simultaneous fixture of several parts; when stress is applied against the head, the pull-through force is significantly increased.
|
|
Thread Inserts for Plastics - AMTEC® and AMTEC® K' in K' (plastic in plastic)
Threaded inserts and the related assembly systems for after-moulding technology are supplied under the name AMTEC®.
These threaded inserts are designed specifically for insertion after removal of components from the mould.
The result provides strong, wear-free, durable threads in high quality plastic components.
The following methods are available for insertion: hot embedding, ultrasonic heat insertion, expansion anchoring or self-tapping. |
|
Description:
JSTKB-M5-18
MATERIAL BRASS
THREAD SIZE M5*0.8
THREAD CODE M5
LENGTH CODE 18
(LENGTH "L" .013)
E NOM. 7.13
MINOR DIA.MIN./MAX. 4.15/4.34
other models are fully available:
JSTKC, JIUB, JIUC, JIBB, JIBC, JIBLC, JITB, JITC
Features:
1. Inserted into non-metal material to provide firm thread.
2. Brass and stainless steel material are available. |
|
BaerCoil® Wire Thread Inserts and BaerFix® Threaded Inserts offer an optimal solution for thread reinforcement, thread repair and recovery of rejected items. They provide high strenght and high-precision threads that resist the effects of temperture, vibrations and corrosion. The inserts ensure superior threads whose compound performance cannot be reproduced by any other single fastening method.
BaerCoil® inserts are rolled from high quality steel wire with a diamond shaped cross section, wound to the shape of a spring. They are generally manufactured in 304 stainless steel, but also available in inconel x750, nimonic 90, phosphor bronze and type 316 stainless steel. Available in all metric and inch sizes, including UNC, UNF, BSC, BSW, BSP, BSF, BA, NPT and METRIC. Types: "free running" and "screw grip". BaerCoil® Threaded Inserts are available in magazined and single. BAER offers corresponding fitting solutions, from hand-held fitting tools and taps to machine fitting tools and machine taps. BaerCoil® products are compatible with wire thread inserts and tools from other manufacturers.
BaerFix® inserts are self-tapping threaded inserts with cutting slots. They tap their own threads as they are driven (turned) into drilled or cored holes. Materials: case-hardened steel zink-plated yellow chromated, brass, stainless steel 1.4105 and stainless steel 1.4305.
Available with internal thread metric and internal thread inch.
BAER offers corresponding fitting solutions, from handheld fitting tools to machine fitting tools. |
|

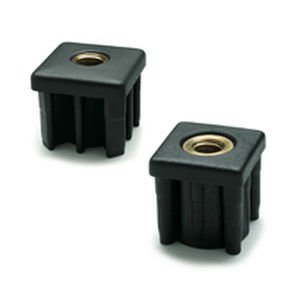

Threaded inserts and standard threaded studs for heat insertion, moulding or cold insertion, in all types of plastics.
Advantages : Offers a resistant tapped or threaded mounting, avoids stress in plastics, high resistance to tensile strength and tightening torque.
Material : brass
Dimensions : from M1.6 to M10 ex-stock, other dimensions under request. |
|

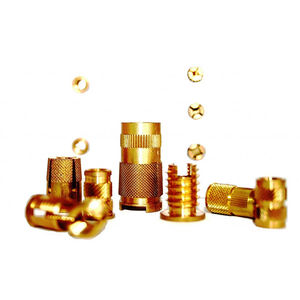

Dodge® threaded inserts for plastics are brass screw machine products designed to provide strong metal threads in plastic components.
They are available with various knurl and undercut patterns to suit almost any threaded assembly application in plastic. Dodge® inserts can be installed in a variety of ways including ultrasonic welding, hot or cold press-in, mold-in and self threading.
Typical Applications would include Automotive Computers,Communication, Aerospace, Defense, Medical industries. |
|
SR series: additional advantages
Because of its optimal dimensions, the SR series keeps all the characteristics of the conventional series while offering additional advantages for installation and use:
Easier and safer installation for higher productivity,
100% compatible with the existing tools of the conventional series, it allows adopting this new series without changing the habits of buyers and users,
More economical to buy, the SR installation tool has new user-friendly features which make it quicker to use and allows a self-check.
Amecoil locking thread inserts
This self-locking series corresponds in all points to the conventional series, the screw threads being locked by polygonal deformation of one or more turns of the thread.
This deformation results in a powerful locking on the sides of the screw thread and counteracts the unscrewing effects of dynamic stresses, vibrations and thermal loads. The locking torques obtained are comparable with the values indicated in standard ISO 2320.
The stainless steel self-locking thread insert is recognised by its red colour.
|
|
The inserti threaded they allow to obtain of the reliable and resistant anchorages in presence of materials with thin spessori. It rests can be carried out the "blind person", on accessible pieces from a single side, fastly and without details operations. For velocizzare the operation the use of pneumatic attrezature is advised.
TECHNICAL NORMS: the immense range of the materials and the forms used for the construction of the inserti threaded allows to resolve every inherent problem the assemblage of the ended manufatto one. The three various witness, ROUND, SVASATA and REDUCED concur various and reliable solutions. The materials in steel, aluminum and stainless steel allow a corrected connection to the base structure. Councils to pierce one 0,10 milimeter in more of the external diameter of the file. The hexagonal file concurs an absolute guarantee of possible spins.
|
|
