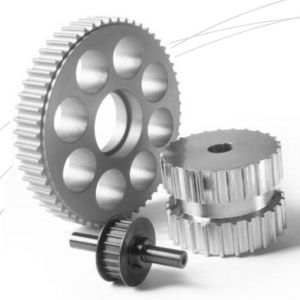

Timing belts are being used in higher performing applications every day. As these applications evolve beyond the every day power transmission application, designers are looking to optimize the design of the system including the pulleys.
At Onvio, we specialize in producing customized pulleys which are produced precisely to the engineers design. Issues such as minimizing inertia, close fitting spaces, light weight, special coatings, tight tolerances as well as total package responsibility are just what we are good at.
Our pulleys are produced in virtually all pitch types - inch and metric, Metric AT and curvilinear. Our strengths lie in our quality, our speed of quoting, instant availability of drawings as well as fast and efficient delivery. You can count on Onvio.
|
|

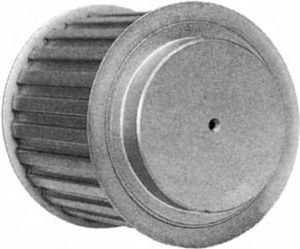

Timing pulleys are used when a system needs to deliver precise positioning accuracy or repeatability. Timing elements help to control belt creep in a typical belt system.
Belt Technologies, Inc. features two types of timing pulleys.
Type I Timing features a timing element which protrudes from the surface of the pulley, and engages in a belt perforation.
Type II Timing incorporates a timing pocket into the pulley, which engages with a physical component on the inner circumference of the metal belt.
Design Considerations for timing pulleys include material type, tape support diameter, and pulley type.
|
|

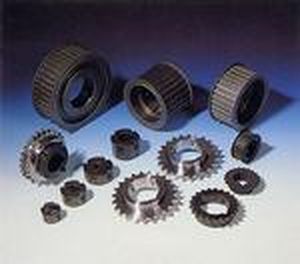

MISUMI provides more than 1 Million mechanical components for the assembly automation. We delivery components europewide in averagely 6-8 days GUARANTEED delivery from the day of purchase, stock items available from 2 days delivery.
MISUMI 24/7 Web Ordering System (WOS) represents a full-fledged e-Commerce solution, which you can use, for the first time, independently from the catalogue in paper form, to configurate MISUMI products, submit quotations and place orders.
For more information about MISUMI, WOS or for ordering a catalogue please visit: www.misumi-europe.com
MISUMI - Precisely Meeting Your Demands
|
|

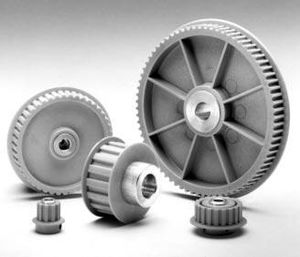

Pulleys, for standard belt widths
Metric: T5 - T10 - T20 - AT5 - AT10 - AT20
Inch Pitch: XL - L - H - XH
HTD: 5M - 8M
Pulley Bar Stock
Long Length material for custom machining.
Metric: T2.5 - T5 - T10 - AT5 - AT10
Inch Pitch: XL - L - H
HTD: 5M - 8M
Custom Pulleys: Other pitch sizes. Made to Order, custom materials (stainless steel, delrin). heat treating, anodized, black oxide, Teflon coating. Please contact customer service for further information.
|
|

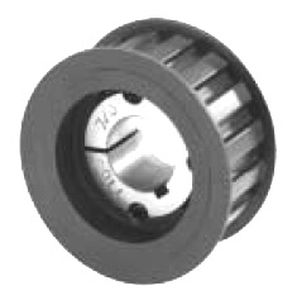

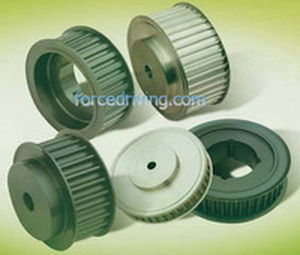

Timing pulleys
- Synchronized no-slip transmission
- Compact design, high efficiency
- Low maintenance, economical operations
|
|
optibelt ZRS Standard timing pulleys for
optibelt ZRS cylindrical bore
optibelt ZRS Standard timing pulleys for
optibelt ZRS taper bushes
optibelt ZRS HTD® timing pulleys for
optibelt ZRS cylindrical bore
optibelt ZRS HTD® timing pulleys for
optibelt ZRS taper bushes
optibelt ZRS Metric timing pulleys for
optibelt ZRS cylindrical bore, T-Type
optibelt ZRS Metric timing belts for
optibelt ZRS cylindrical bore, AT-Type
optibelt CE Clamping elements
|
|
|

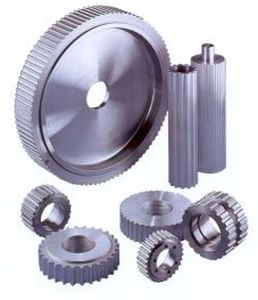

Davall Stock Gears is a UK based stockist and distributor for a wide range of standard geometry gearing, both imperial and metric, timing drive pulleys and belts, shaft couplings, component fixing systems, miniature speed reducers and gearboxes.
|
|

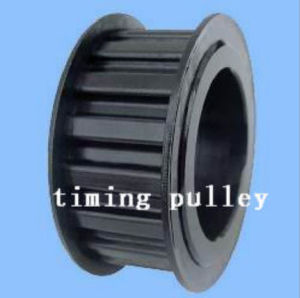

Timing Belt Pulleys are available in the following types:
- XL 1/5" pitch
- L 3/8" pitch
- HTD 3mm, 5mm, 8mm pitch
- Custom Design Pulleys
- Molded high strength, glass reinforced nylon
- All nylon or with aluminum hubs
- Strong, accurate, lightweight, quiet running
- Single or double flange
- Set screw(s) and keyway(s)
|
|

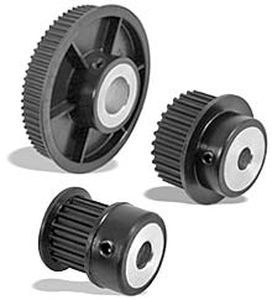

Timing belt pulleys and V-belt pulleys
Walther Flender Antriebstechnik GmbH is one of Germany major suppliers of timing belt pulleys and V-belt pulleys. We have a wide variety of belts and standard pulleys in stock.
Toothed belt and V-groove pulleys are manufactured by Walther Flender based on customer drawings and, if necessary, are processed with special surface treatments, balancing or grinding, according to your requirements.
WF timing belt and V-belt pulleys are available in various aluminium alloys and synthetic materials. We also offer pulleys made of steel and grey cast iron.
In coordination with our product managers, specially adapted hub cutters are used to reduce the stress on the timing belt and to optimised positioning accuracy.
|
|
