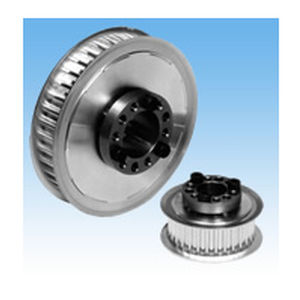

Toothed pulley P-M series

taperedtiming beltaluminum

The most standard type of Lock Belt Sprockets *Strong fastening allows use with Ultra PX Belt *Flat mounting is lightweight and space-saving * The pulley body is made of "S-type aluminum," a high-strength aluminum alloy called super duralumin. The lineup also includes the "S-type plated specification," which features electroless nickel plating on the pulley body and sleeve. * Effective in further reducing weight and inertia Features * Strong, non-backlash connection between shaft and pulley. *No need for keys or axial retainers, positioning and phase alignment can be easily performed. *Easy to install and remove with only a few bolts. * Easy ordering by model number. No need to create a shaft bore machining drawing. The inner diameter of Belt Sprockets and the outer diameter of the sleeve are tapered, and by tightening the tightening bolts, Belt Sprockets move by sliding on a tapered surface. At this time, a wedge action generates forces P and P' that press against the shaft and the inner surface of the tapered surface. This P and P' force generates a frictional force that tightly fastens Belt Sprockets and shaft together. 2. Lock Belt Sprockets S-type, plated finish This is a plated version of Lock Belt Sprockets S-type, featuring electroless nickel plating. The pulley body and sleeve are electroless nickel plated, and the bolts are treated with a special coating.
