Colors for your data

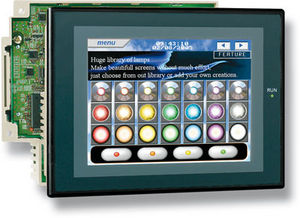

Industrial Operator Panel (HMI) with 7.5" touchscreen color TFT display
64K colors TFT display
VGA (640x480 pixels) resolution
Resistive touchscreen
Connection to industrial bus systems and Ethernet (requires plug-in modules)
32 MB internal Flash memory
32 MB on removable media (option)
SSFDC memory card
IP65 front panel protection
Programmable with "Designer" software tool (option)
|
|
|
|
|
|
Operator Interfaces - Human Machine Interfaces
FEATURES:
Many PLCs supported
Friendly multiple languages supported to the end users
Temperature controllers & inverters directly connected to HMI via Modbus
Data logging, bargraphs, trends and alarms
Animation: display/hide, flash, color changed
Data entry and data displayfrom/to PLC registers directly
Free configuration software, configuration for all HMIs from PC software
Upto 65535 screens in each project, pop-up screen and associated screen supported
Ladder programming (Soft PLC) supported in HMI and Ladder online monitoring
Screen security
Floating point suppored
Ready made registers for Real Time Clock
Unique Tag database for HMI and PLC registers
256 real time alarms, and 30 or 2000 historical alarms
Global tasks, power-on tasks, list of predefined tasks and screen tasks-before, while and after
Ready made objects for lamps, botton , data entry, data display, trend, alarm, bitmaps, meters
Action for graphical objects from list of predefined tasks
Ready-made system coils for changing RTC data by sec., min., hour, day, month, year
|
|
Customised touch screen systems
Individual touch screen systems
Can be combined with other technologies (e.g. with membrane keyboards)
Customised electronic circuitry
|
|
|
|
|
|

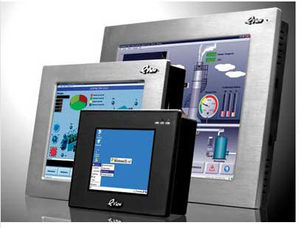

A New Generation of Graphic OITs
The Silver Series Plus operator interface terminals offer a wide array of display sizes and connectivity options, high quality displays, enhanced data management and monitoring features, & high quality graphics & design options.
The enhanced displays come in 6”, 8”, 10” & 12” sizes, & all units feature 65K-color high-brightness, high-contrast TFTs with high-precision touchscreens.
The OITs deliver a wide variety of connectivity options. 10/100BaseT Ethernet allows for multiple high-speed network configurations. There are three USB 2.0 host ports, three COM ports, audio in/out ports, CompactFlash port, & 44-pin IDE interface.
Many enhancements have been made to the Silver Series Plus’s configuration software. One of these is data management tools – which now includes data sampling & data logging features. Other enhancements include the ability to program projects in up to eight different languages & improved security features with up to six levels of password protection.
Pricing for the Silver Series Plus operator interfaces is extremely affordable – with the 6” display listed at just $600.
|
|
Beijer Electronics H-series H-T60b, touchscreen panels with mono/color STN LCD 5.7” display
Display: Mono STN LCD
Presentation form: 5.7” (diagonal), 320 x 240 pxl
Keypad: 1 Meny key and 5 user-defined function keys
The H-series offers valuable HMI functionality at an affordable level. The series include keypad and touch screen interfaces and is available in seven different sizes from 3 to 10.4 inches. Offering three levels of functionality – Standard, Plus and Network – the H-series enables you to select and pay for what level of HMI technology you need.
|
|
|
|
|
|
Hardware
VGA 640x480 pixels, lighted, TFT colour graphics LCD display 10.4". (An enhanced TFT display is available as an option).
Resistive touch screen.
Optional PS/2 keyboard / keypad interface.
Ethernet options available. Supports TCP/IP, ModbusTM and other protocols.
4 Mbytes of flash memory and 16 Mbytes RAM.
EIA-232, -422 or -485 serial interface. Additional serial ports available.
RISC 92 MHz MIPS R3000 processor.
The terminal is industrially hardened to operate in rugged environments and meets NEMA-4 specifications for washing, ice and salt spray.
Modular form factor also available.
Software/Firmware·
QlarityTM - Object-based programming language makes application design easy for non-programmers whilst also having the capability of highly complex applications.
Design with pre-defined objects, edit current objects or design new objects for your application
Windows® programming environment - Qlarity Foundry is available for free.
Support for select partner hardware (distributed/remote I/O, motion control).
Keys around the display can be customised and your logo can be added to the legend. Custom hardware, firmware and software options are also available.
Contact us for a free trial demonstration terminal.
|
|
|
|
|
|
NEW RED LION G306A OPERATOR INTERFACE PANEL FEATURES ADVANCED TFT DISPLAY FOR CRISP IMAGES, EXCELLENT READABILITY
The 5.7" 256 color QVGA 320x240 pixel LCD display also offers three front-panel LED indicators, and a five-button keypad for on-screen menus. In addition, as with all G3 panels, the G306A arrives standard with an Ethernet port, USB programming port, support for up to five high-speed serial ports, integrated protocol converter, built-in web server, standard CompactFlash socket and IT-ready data logging.
The G306A is both robust and simple to operate. Users can easily enter data on the G306A through the resistive analog touchscreen or front panel keypad. Plus, this model comes with an increased onboard flash memory of 8 MB, and it can be configured using Red Lion’s free Crimson Programming Software. With these exceptional features, the G306A is ideal for collecting and displaying data or interfacing with a variety of devices, including PLCs, PCs, drives, PID controllers and others, all while offering exceptional visual properties.
The Red Lion G3 series offers the most powerful communications platform available today, providing a cost-effective solution for protocol conversion, remote system control and monitoring, as well as historical data logging. By utilizing innovative technology to display sharp, high-quality images and easy-to-read data, the G306A delivers a superior HMI solution.
- Configured using Crimson 2.0 Software (FREE)
- Up to 5 RS-232/422/485 Serial ports
- 10 Base T/100 Base-TX Ethernet Port
- Remote Web Access and Control Facility
- UL Listed for use in Hazardous Locations
- IP66
|
|
Beijer Electronics EXTER T70, touchscreen panel with TFT-LCD 6.5” color display
Display: Graphic 64K color TFT-LCD, resistive touch
Presentation form: 6.5”, 640 x 480 pxl
USB Host, USB Device and built in CF-card slot
Front protection class: IP66 (waterproof even when exposed to high pressure washing).
With EXTER™, you get an operator panel that is ready to impress you. Its high-performance Intel Xscale® processor, robust construction and multiple communication ports make it a futureproof choice for your machines and processes. There are fourteen models to choose from - seven with touchscreen display, six with keypad control and one mobile operator panel. The award-winning, slim design and the powerful performance make EXTER™ an operator panel beyond the ordinary.
|
|
|
|
|
|
Touch screens are often used as an alternative—or in addition to—more traditional human-machine interface technologies, such as a membrane switch or keyboard. The use of a touch screen allows the keypad to be reconfigured as desired to suit the application. Because of their intuitive nature, touch screens are often used in applications where the user cannot be trained to interface with the device. Kiosks and point of sale devices exemplify these applications.
The process of authentication or the fundamental skills of communicating and learning can be enhanced with a touch screen that provides tactile feedback. Devices that provide synchronized sound and graphics upon touch are more intuitive, personal and satisfying. Now the predictive sensation of touch and response can be applied to touch screens to heighten interaction and usability.
Advanced Input Systems can help Original Equipment Manufacturers heighten the level of interactivity and build a more engaging user experience with TouchSense® technology. This programmable technology by Immersion® adds tactile feedback to touch screens. And sensory-based touch screens that “touch back”, supply distinct benefits and give users a new and more satisfying experience—one that’s more interactive, engaging, intuitive, and fun.
|
|
Beijer Electronics EXTER T40/T40m, touchscreen panels with 3.5” display
Display: Graphic 64K color TFT/Graphic 16 grayscales
Presentation form: 3.5”, 320 x 240 pxl
USB Host
Front protection class: IP66 (waterproof even when exposed to high pressure washing).
With EXTER™, you get an operator panel that is ready to impress you. Its high-performance Intel Xscale® processor, robust construction and multiple communication ports make it a futureproof choice for your machines and processes. There are fourteen models to choose from - seven with touchscreen display, six with keypad control and one mobile operator panel. The award-winning, slim design and the powerful performance make EXTER™ an operator panel beyond the ordinary.
|
|
Beijer Electronics H-series H-T50b, touchscreen panel with mono STN LCD 4.7” display
Display: Mono STN LCD, 16 shades of blue
Presentation form: 4.7”(diagonal), 240 x 128 pxl
The H-series offers valuable HMI functionality at an affordable level. The series include keypad and touch screen interfaces and is available in seven different sizes from 3 to 10.4 inches. Offering three levels of functionality – Standard, Plus and Network – the H-series enables you to select and pay for what level of HMI technology you need.
|
|
AGP3000 Series : 20 models of Graphic Operator Interfaces ... 6 screen sizes. (3.inch/5.7inch/7.5inch/10.4inch/12inch//15inch/).
- TFT colour screens (65.536 colours) or STN (4096 colours), B&W or Amber.
- Aluminium die-cast bodies.
- Connectivity with numerous devices : serial interfaces, Ethernet, Expansion Unit, USB (x 1 ou 2), CF-card, sound out, very powerful CPU. 5 multimedia models= Video In + Sound In.
- All protocols available: Unitelway, Modbus, MPI, Sysmac...
Pro-face, world leader on touch panels invits you to discover a powerful and easy-to-use range of products.
|
|
|
|
|
|
Touchscreen HMIs that strike the perfect balance of advanced features and value.
The G3 Kadet series of operator interface panels offer a host of functional interface and connectivity features for applications where FTP access, data logging, and web server capabilities are not needed. Based on the G3 series, with many of the same capabilities, the G3 Kadets offer far more features than conventional HMIs while providing an advanced interface that is ideal for OEMs, discrete machinery and process machinery.
Available in 4.3", 5.6" and 8" models, the G3 Kadet series offers the same protocol conversion benefits as the original G3. The units have multiple serial ports, drag-and-drop configuration via Crimson programming software, and port sharing capabilities. The larger models feature integrated Ethernet allowing simultaneous communications with up to six device types including PLCs, PCs, drives, PID controllers
and more.
Models :
- G304K 4.3" Operator Interface with TFT Display
- G306k 5.6" Operator Interface with TFT Display
- G308k 8" Operator Interface with TFT Display
* CONFIGURED USING CRIMSON® 2.0 SOFTWARE
* TWO SERIAL COMMUNICATIONS PORTS
(1 RS-232 AND 1 RS-232/422/485)
* UNIT’S CONFIGURATION IS STORED IN NON-VOLATILE FLASH
MEMORY
* BRIGHT 4.3-INCH TFT ACTIVE MATRIX 256 COLOR 480 x 272
PIXEL DISPLAY
* THREE FRONT PANEL LED INDICATORS
* NEMA 4/IP65 FRONT PANEL
* POWER UNIT FROM 12-28 VDC
* RESISTIVE ANALOG TOUCHSCREEN
|
|
Embedded panels
Description
Magelis Smart is as easy to set up as it is to maintain.
Simple and easy tp use
Standard Windows XPe technologies
Touch-sensitive screen and viewing angle of up to 160°
Swapable with most Magelis
Dependable availability
Compact
Rugged : Hardened and UL 508, CSA certification
Open
Internet/intranet access
Easier to upgrade : Fast Ethernet 10/100 Mbps port, Compact Flash card, 2 PCMCIA expansion slots
2 Fast Ethernet ports
|
|
|
|
|
|
CIMO - monitor operator panels
There is a wide range of CIMO monitor operator panels
to suit every task and every budget.
CIMO monitor operator panel with LCD "TFT display"
Extremely slim design, outstanding colour brilliance,
excellent reading angle, front panel membrane-protected
against chemicals, new ergonomic design -
just a few of the impressive features of this top
product from Wöhrle.
CIMO operator panel with Windows CE - the latest
generation
This particularly high-quality range is the result of
the latest Wöhrle development and closes the gap
between text-oriented computer terminals and traditional
industrial PCs. The operating system is
Microsoft Windows CE. This means that it is possible
to operate all standard applications and utilise the
advantages of this platform, such as the Internet
facility.
TFT LC displays are provided for the operating panels
of the future, providing high resolution and excellent
colour.
These ultra-compact operator panels are setting the
standard.
CIMO operator panel is the economical version
An easy-to-use membrane keyboard and a graphic
black and white LC display make sure that control
and monitoring is cost-effective. A particularly economical
solution.
CIMO monitor operator panel with CRT
This range of equipment with monochrome cathode
ray tubes provides the most innovative and economical
solutions in the field of operating and monitoring
plant and machinery. Protected at the front to IP 65
they also withstand harsh environments.a
|
|
Operator panels of series AS-Pxx:
The devices allow for simple operation, diagnosis and monitoring of your machines and systems. You can design the user interface according to your requirements.
An intuitive operator prompting via touch screen, assigned function
keys or a combination of both are possible. The use of insertable strips allows for individually labelling the keys.
Operator panels of series V606:
The convenient and cost-efficient operator panels for all systems,
which can be connected via modbus, are particularly suited for simple visualization tasks. In combination with our controllers, it provides you with a complete automation solution.
|
|
Operating temperature -20 ... +70 °C ; Storage temperature -40 ... +80 °C ; Operating load 0.5 + - 0.3 N Operating life 10.000.000 Hits by finger
Operating life 100.000 Characters by pen ; Light Transmissivity > 80 %
Top surface hardness >2H
|
|
|
The LabVIEW HMI family of industrial panels provides three different hardware platforms so LabVIEW developers and programmers can deploy operator interfaces alongside a broad range of NI product platforms. The National Instruments FPT-1015 is a 15 in. flat-panel touch screen for all PXI embedded controllers and a flat-panel monitor for the NI Compact Vision System. The NI TPC-2006 is a 5.7 in. Windows CE touch panel computer programmed with LabVIEW PDA to create a remote terminal for headless real-time controllers such as Compact FieldPoint and CompactRIO. The NI PPC-2015 is a Pentium 4 PC that runs Windows XP and works with a wide range of I/O devices from National instruments; it connects via Ethernet to all NI PACs. To create an HMI for a broad range of distributed data the LabVIEW Datalogging and Supervisory Control (DSC) Module provides connectivity to NI hardware and third-party hardware through OPC, Modbus TCP/IP, and gateways for industrial communication protocols.
|
|
Flexible Design and Options
- Available in 12", 15" & 17" touch screen sizes
- Standard and Performance configurations for ease of ordering
- Deluxe units come with either a CD-RW or DVD+/-RW drive
- Optional stainless steel bezel
- Memory and hard drive upgrades available, including Compact Flash
- Key communication interfaces - Ethernet, USB, serial, parallel; ISA & PCI slots are available for field bus or other add-on requirements
Ease of Use and Maintainablilty
- Five built-in system access keys that provide full functionality without a keyboard or mouse
- Front USB port for easy access to portable devices
- Hardware diagnostics information that can be communicated to GE Fanuc software
- Meets stringent specifications for industrialhardened equipment, including hazardous locations (Class I Div II)
|
|
