Sonar Proximity Switches SIMATIC PXS
From 2,5 cm to 10 m - They Hear Everything!
Our sonar proximity switches sense objects of varying materials, shapes, colors or consistencies with absolute precision, flexibility and reliability. The application potential is almost unlimited. Whether recording fill levels or heights, measuring distances or counting bottles, our switches recognize objects with a wide range of properties from a distance of 2,5 cm to 10 m, regardless whether they are liquid, solid, powdery or even transparent. Surface conditions are irrelevant as well - they can be rough or smooth, clean or dirty, wet or dry. Our proximity switches feature maximum ruggedness and resistance against dirt, vibration and extraneous light or sound.
|
|
|
|
|
|
Ultrasonic sensors present the ideal solution for non-contact position and distance measurement in all industrial areas where environmental conditions such as dust, smoke or steam may effect the sensors. Objects consisting of a variety of materials can be detected regardless of colour or shape to within millimetres.
The sensor uses very high frequencies that are outside of the human’s audible range, as a data carrier. The time it takes the ultrasonic wave to pass between the sensor and the object is the value for the distance or the position. Ultrasonic sensors have proven their reliability and precision especially in the wood and furniture industry, the construction materials industry, farming equipment, construction equipment and in level control applications.
Pepperl+Fuchs’ ultrasonic sensors currently encompass 8 series of mechanical designs for through-beam, direct detection and reflex operation with more than 40 designs and models. Customer and application specific custom solutions underscore our technological competence in this area of sensors.
|
|
|
Ultrasonic sensors use ultrasonic waves for non-contact and wear-free detection of a large variety of objects. It does not matter whether the object is transparent or opaque, metallic or non-metallic, or of liquid, solid or powdery consistence. Environmental conditions such as spray, dust or rain hardly affect their function.
|
|
|

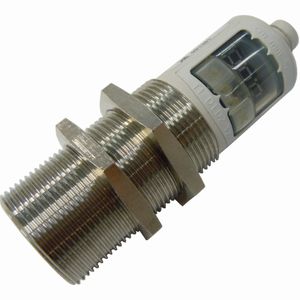

Ultrasonic distance sensors are working contactless and can still detect small objects (e.g. wire Æ 1 mm) at considerable distances. They are able to disregard disturbing backgrounds and functions in fog, dust , dirt or extreme lighting is possible. No correction factors have to be applied and colour does not matter.
|
|
|
Honeywell Sensing and Control ultrasonic distance sensors solve tough position sensing problems, detecting targets made of practically any material. They work in dry, dusty environments. Particularly useful where other sensing technologies have difficulty, such as: clear or shiny objects, foggy or particle laden air, splashing liquids, etc. Also where larger sensors or longer sensing distances are required.
|
|
Ultrasonic sensor UT 20-240-AIM4
Range to 240 mm
analogue
teach-in
4 ... 20 mA
plug M8 4 pins
product data
|
|
|
|
|
|

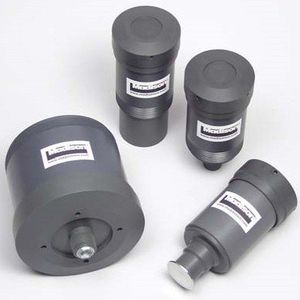

The RPS-401A-80P analog ultrasonic sensor is mounted in a PVC barrel housing and is completely self contained. It is powered by 20-30 VDC and is reverse polarity protected. It also has a narrow beam angle which enables it to get into tight places. A flat target can tilt up to 10 degrees and still be detected. The RPS-401A-80P has 2 short circuit protected analog outputs, 4-20mA and 0-10 VDC. These outputs can easily be inverted and can be scaled over almost any range by means of adjusting the zero (P1) and span control (P2). The (P1) potentiometer must be adjusted first. Both analog outputs can be used at the same time.
For set-up purposes an LED strength indicator is provided. This LED is Green when not detecting and changes to a bright Red as a target moves into place depending on how much reflected signal is coming back from the target. The frequency of operation for the RPS-401A-80P is 140kHz. The RPS-401A-80P is constructed of PVC. The barrel measures 30mm x 105mm. A standard 6' cable is provided.
|
|
The RPS-326 is a low frequency, sealed transducer sensor best suited for applications where harsh or hazardous environments are a problem. The transducer head is constructed of 316 grade stainless steel and has a CSA explosion-proof rating. The RPS-326 sensor head CSA rating is Class 1, Division 1, Group ABCD. The ranging and proximity modes provide the versatility of simple detection, or actual distance measuring.
The isolated form C relay furnishes N.O. and N.C. outputs, and with the addition of the RPS-500 card various analog outputs are supplied. The RPS-326 sensor, which operates at a frequency of 37kHz, has a narrow sensing beam. Sensing ranges available for the RPS-326 include 24" to 72", and 24" to 240". Mounting flanges, LED indicator, ranging potentiometer and 30ft. transducer cable are included. Optional cable lengths are available.
|
|
|
|
|
|
Features:
Narrow, 7° sonic beam
High resolution 500 KHz ultrasonic frequency
Fast response - as fast as 1.5 ms sampling rate
Self-contained, 18mm barrel or flat-profile housing styles
Field programmable capability in 18 mm and flat-profile models
DeviceNet capability available in flat-profile models
CE Certified
When short-range sensing applications demand repeatable and reliable On/Off control performance, the high-frequency, fixed-window SUPERPROX® Model SM600 Series ultrasonic proximity sensors are the ideal solution. These noncontact, self-contained sensors are unmatched for the reliable detection of objects of all kinds, transparent or opaque, liquid or solid, and as small as 1.6 mm (0.06") rod diameter, regardless of color or shape. Offering a variety of sensing ranges, up to 305 mm (12"), and fixed sensing windows, this series provides for the convenient placement of SM600 sensors throughout the plant.
Given the capability to “back off” from formerly “nearly-touching” mounting positions, these sensors are the solution for such applications as: metal parts as close as 25 mm (1"), moving back-to-back at speeds in excess of 2000 per minute. Others include: cap presence and/or tilt detection, fill-level checking, fill-tube-presence monitoring, downed container detection, case inspection, detection of container edges, web monitoring and CD case inspection where opacity, color and height vary, and wherever there’s a need to upgrade a metal prox function.
|
|
|
|
|
|
The RPS-400-6 is a compact, high frequency sensor. It was introduced to the Migatron family of ultrasonic sensors to better meet the needs of the machine manufacturing industry.
This sensor has a wide array of application solutions not found in other proximity sensor technologies. The RPS-400-6 has an adjustable two to six inch sensing range with background suppression (meaning any object within the desired range is detected, while objects out of the desired range are ignored).
It cannot be affected by changes in target color or material. The RPS-400-6 is capable of detecting vibrating and/or tilting targets. A response time of no more than 2.1 ms and an operating frequency of 300 kHz makes the RPS-400-6 a repeatable and accurate high speed sensor.
The RPS-400-6 is a three wire NPN transistor output device. The transistor can switch 30VDC at 50 mA continuously. A six-foot cable comes standard with the RPS-400-6. Special cable lengths or connectors are also available for OEM applications.
.
|
|
The RPS-412A is a high accuracy analog ultrasonic sensor (+/- 0.002" or 0.05% of range, whichever is greater, at 25 degree C). The sensor has a built in temperature compensation target, that monitors and compensates for air temperature 50 times per second. The sensor also compensates for changes in relative humidity, changes in barometric pressure, and other factors that influence the speed of sound.
The RPS-412A has a 47mm stainless steel barrel housing. The stainless steel housing is electrically isolated from the sensor electronics.
The RPS-412A has a 0-10V analog output. Two measuring ranges are available: 3-10" and 3-16".
|
|
|
|
|
|
The RPS-409A-IS is an intrinsically safe, UL Listed analog ultrasonic sensor. It is a self-contained sensor in a 30mm PVC barrel housing. It is powered by 16-30VDC with reverse polarity protection. It also has a narrow beam angle, which enables it to get into tight places. A flat target can tilt up to 10 degrees and still be detected.
The RPS-409A-IS has a short circuit protected analog 0-10VDC output. Example using the RPS-409A-80-IS: The output is a linear .125 volts per inch.
The RPS-409A-IS has built in temperature compensation to provide accurate readings throughout the entire operating temperature range.
An LED indicator is provided. The LED is green when not detecting and changes to red when a target moves into place. The sensor is completely sealed and the connection is made by way of IP and NEMA rated cables.
There are four sensing ranges available: 4-40", 6-80", 10-144", and 12-216".
The RPS-409A-IS is designed to take advantage of today's PLC and computer analog input cards. The numerical values that are programmed into the PLC or computer will determine the zero and span.
|
|
|
|
|
|
The RPS-150A analog ultrasonic sensor is mounted in a limit switch housing and is completely self contained. It is powered by 20-30VDC and is reverse polarity protected. It also has a wide beam angle which enables it to detect a target that is not at right angles. A flat target can tilt up to 35 degrees and still be detected. The RPS-150A has 2 short circuit protected analog outputs, 4-20mA and 0-10VDC. These outputs can easily be inverted and can be scaled over almost any range by means of adjusting the zero & span control. For set-up purposes an LED strength indicator is provided.
This LED is green when not detecting and fades to RED as a target moves into place, depending on how much reflected signal is coming back from the target. The frequency of operation is 38.5kHz. There are two ranges available in this model 2" to 40" or 5" to 80". It also features a quick disconnect receptacle. The housing is constructed of plastic valox and has standard 30mm X 60mm limit switch mounting dimensions as well as side holes for mounting the sensor on its side.
|
|
Sensors are elementary components of automation. Increasingly precise and wear-free sensors with more and more reliable measurements enable a continuous improvement of the production process. Here, no-touch sensors working with an almost unlimited lifetime are playing a major role. In distance measuring, different measuring methods depending on the measuring range have established themselves. For the medium range between a few centimetres and several metres optical and ultrasonic systems are mainly used. Ultrasonic distance sensors are used in harsh, industrial environments, because they are independent of the material and the colour of the object to be measured, they cannot be disturbed by light, dust and fog, and they work very precisely and linearly with background suppression.
ELTROTEC Sensor GmbH ultrasonics has more than 20 years of experience in addition to the higher-end laser distance sensors with more accuracy, speed and precision. Trust our products for your application in:
|
|
Light and sound are two natural phenomena which let every living being recognise their environment without physical contact and over widely varying distances. Likewise, industrial processes require reliable information. SICK's ultrasonic sensors detect objects and measure distances with high accuracy
Further advantages:
- the outstanding background suppression and the reliable detection of objects
- almost independently of their appearance.
the application determines the output - binary or analogue - according to your wish.
|
|
Detection, the measurement and the removal of not easily detectable objects are carried out in a sure and reliable way by means of our detectors with ultrasounds until a distance of 3 meters with a high and constant resolution, in digital and analogical mode. They tolerate clogging, dust and moisture. They are especially ready to detect transparent, solid objects and in the form of granules. The electronic device Teach-in you makes it possible to adjust your detectors in a correct way in a turn of hand. The solution when the other techniques do not give satisfaction.
- Recognizes also difficult surfaces
- High resolution
- fine Beam with ultrasounds
- Small cases
|
|
In the area of modern industrial sensors, Mayser offers you a tailor-made, intelligent solution: the efficient ultrasonic sensor USIE with extremely flat noise characteristics, which has a blind zone of just one centimetre and an operating range of 200 centimetres.
The new sensor series is based on an ultrasonic converter with excellent adaptation to the medium of air. Interaction with a high gain analogue electronic system results in unique reception sensitivity, enabling scanning of small objects at great distances. For example, a wire with a diameter of one millimetre can be reliably detected at a distance of 1000 millimetres.
|
|
|
The ITC-9101 85 kHz air transducer is designed for a variety of ultrasonic sensor products. A PVC housing and stainless steel face make it suitable for a wide range of environments. Its 23° beam angle and excellent thermal stability make it a good choice for demanding proximity, position, and level sensor applications. It can be used as a transmitter, receiver or both as needed.
|
|
|
Ultrasonic waves are used to enable stable detection of transparent objects, such as transparent films, glass bottles, plastic bottles, and plate glass, using Through-beam or Reflective Sensors.
|
|
Features:
Self contained
Meets NEMA 4X/IP67 standards
Survives harsh environments
No sensitivity adjustments
Sensing ranges up to 1829 mm (72")
In response to problems directly attributed to the harsh environments in which sensors operate today, Hyde Park offers broad application solutions with this industry-proven line of ultrasonic thru-beam sensors. First produced in 1974, the MICROSONIC® SM100 Series sensors is the "workhorse" of the Hyde Park product line with tens of thousands of units continuing to perform a variety of thru-beam sensing functions throughout the world.
Using the world’s leading ultrasonic sensing technology, the MICROSONIC® SM100 Series sensors performs precise object detection...from transparent containers to metal parts as small as 6.4 mm (1/4") diameter at speeds in excess of 2000 units per minute.
|
|
|
|
|
|
Features:
Sensing ranges of 1m (39"), 2m (79") and 8m (26')
Reliable detection with simple On/Off control of the output
Easy pushbutton setup or optional hand-held setup/display accessory available for all
Self-contained, 30 mm barrel, in either ULTEM® plastic or SS303 stainless steel housing
Resistant to caustic materials and harsh environments
Field programmable capability
DeviceNet capability
CE Certified
Whether the object being detected is just a few inches from the sensor or as far away as 26 feet, or the application calls for a specific sensor configuration, the SUPERPROX® Model SM900 series of ultrasonic sensors offers a variety of proximity sensing solutions. There is the mounting convenience of a 30 mm housing, sensing ranges of 1 m (39"), 2 m (79"), and a long-range
8 meters (26'), the shortest deadbands in the sensing industry, and unique factory configurability to meet the user’s needs. In addition to sensing ranges, model selections include Normally-Open or Normally-Closed NPN and PNP outputs, Complementary NPN or Complementary PNP outputs, and a variety of response times and default sensing window setup limits. By using the Model Reference Guide to select the specific model required, the user is assured of a reliable, cost-effective proximity sensing solution for a multitude of applications.
|
|
|
|
|
|
Features:
Self-contained, 12 mm, threaded barrel, or flat-profile housing styles
Extended sensing range of 102 mm (4.0")
Field Programmable capability
All-material, proximity sensing capability
CE Certified
Use the highly versatile SUPERPROX® Model SM300 Series of proximity sensors as a replacement for inductive proximity sensors and fixed-field photoelectric sensors. Its long range, small size, fast response, performance, reliability and low cost, offers a simple, easy to use, once-and-for-all solution to many of the proximity sensing problems encountered daily in almost every industry.
The SM300 proximity sensor provides reliable detection of objects up to 102 mm (4") from the sensor face, performance unmatched by other proximity sensors of the same size or larger. At this distance, the sensor is safely out of harm’s way, an especially important cost savings benefit. Easy to install, the SM300 is available in two different housing styles: the 12 mm threaded barrel or the "flat-profile" housing both available in ULTEM® plastic. As with all SUPERPROX® sensors, cable and connector styles are available.
|
|
general data sensing range sd 20 ... 200 mm
scanning range close limit Sdc 20 ... 200 mm
scanning range far limit Sde 20 ... 200 mm
repeatability < 0,5 mm
resolution < 0,3 mm
adjustment external Teach-in
sonic frequency 380 kHz
response time ton < 30 ms
release time toff < 30 ms
alignment aid target display flashing
light indicator yellow LED / red LED
temperature drift < 2% of distance to target So
electrical data voltage supply range +Vs 15 ... 30 VDC
output current < 20 mA
residual ripple < 10% Vs
short circuit protection yes
reverse polarity protection yes
mechanical data type cylindrical
housing material brass nickel plated
width / diameter 12 mm
height / length 70 mm
connection types connector M12
ambient conditions operating temperature -10 ... +60 °C
protection class IP 67
|
|
Ultrasonic sensors enable detection, without contact, of any object irrespective of its: material (metal,plastic,wood,cardboard,etc.),nature (solid,liquid,powder,etc.),colour
Description
Sensor with solid-state discrete output
Cylindrical or flat formats
Sensing distances: 10 cm, to 8m (adjustable using teach mode).
PNP or NPN selectable outputs, NO or NC function

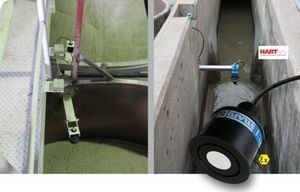

Sensor for level monitoring
For controlling 2 levels (emptying and filling levels)
Cylindrical formats Ø 18 and Ø 30 mm (plastic case)
Sensing distance from 50 cm to 2 m (adjustable using teach mode).
Sensor with analog output
Analog output 4…20 mA or 0…10V
Cylindrical or flat format
Sensing distances from 50 cm to 8 m (adjustable using teach mode)
|
|
User-friendly
Simple parameter setting with a PC via USB 2.0
Intuitive user guidance due to pre-configured sensor functions
No image processing know-how required
Reliable
High-quality receiver modules and optics detect every detail
Insensitive to ambient light and process tolerances
Rapid switching of test jobs
Powerful
Extensive function library for versatile use
Simultaneous verifi cation of various properties within one job
Up to 3000 inspections / min
Simple installation
Easy to install industrial housing
Manual focus adjustment for fl exible working distances
Extensive installation accessories
All-in-One
Compact, rugged design in a single durable housing
Integrated LED illumination, precision optics and processing electronics
Autonomous operation without additional external devices
Optional serial data interface
Industry standard
8...30 VDC power supply
PNP switching outputs, alarm output
High protection class
Standard M12 connector
|
|
|
|
|
|
The RPS-322 (model shown) has 2 sealed stainless steel multiplexed transducers, independent range control adjustments, LED indicators, and form C relay outputs.
The transducer head is constructed of 303 grade stainless steel with a 302 grade stainless steel sensing face, and is best suited for environments where dirt and moisture are a problem, as well as some chemical environments. This sensor also has a unique master and slave feature which enables many of the same units to be used within close proximity of one another without cross-talk interference. For example, if three sensors are needed in a close area, one sensor would be left as a master and the other two would be slaves.
The remote transducers allow for mounting of the sensor heads in cramped spaces while the controller is out of the way. The (2) independent and isolated form C relays furnish N.O. and N.C. outputs. This sensor operates at a frequency of 150kHz for the 72" range. This sensor has a narrow sensing beam. Mounting flanges, LED indicators, ranging potentiometers, and 6-ft. transducer cables are included. Optional cable lengths are available.
|
|
