Vertical Reciprocating Conveyors move materials in factories, warehouses, industrial plants, institutions or anywhere that products or supplies need to move from one level to another. Vertical Reciprocating Conveyors are not elevators. In fact, they have their own national code (ANSI/ASME B20.1) and are specifically exempt from the national elevator code. Vertical Reciprocating Conveyors provide fast, efficient, convenient and safe access to/from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications. The principal components of Vertical Reciprocating Conveyors include guide columns, carriage and a mechanical or hydraulic actuating mechanism.
Custom Designed for Your Needs
Pflow Industries has the engineering capabilities, experience and technical know-how to solve a myriad of vertical lifting problems. We have designed vertical lifts to move materials that weigh
1 lb. to over 200,000 lbs … with carriages from 30 x 30 inches to 60 x 60 feet … vertical heights from 4 feet to over 200 feet. We have built large load work platforms, over and under equipment for assembly lines, hopper transfer systems and much more. At Pflow, we know each vertical lift application is unique. That’s why we address every detail of every job. We carefully analyze your needs, cover all design & construction issues, provide complete code-approved engineered drawings and deliver unmatched, ongoing service support. Our experienced engineers will design a vertical lift tailored to your needs.
|
|

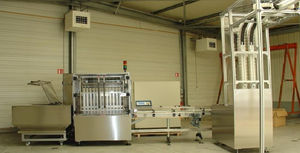

CVC SPECIFICATIONS
CAPACITY: Up to 3000 lbs.
FRAME: Heavy duty tubular construction.
DRIVE: (4) continuous roller chains
driven by a suitably sized brake motor.
RATE: Up to 25 loads per minute.
SPEED: 60 FPM (100 FPM maximum).

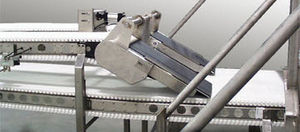

LOADING: Automatic loading is
accomplished by metering belt. Operator
attention is not required.
PLATFORM: Size depends upon product.
GUARDS: Expanded metal guarding.
CONTROLS: Supplied as required.
|
|

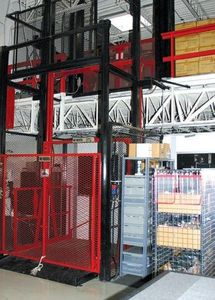

Vertical Reciprocating Conveyors, or VRC Material Lifts provide the most economical, dependable, and safe method of high capacity freight movement between multiple levels, up to travel of 100 feet, with the smallest platform size or footprint possible. An economical alternative to expensive freight elevators or fork trucks, Autoquip VRC Material Lifts can be customized to improve freight and goods movement in any application: industrial mezzanines, retail stores, restaurants, warehouses, conveyor systems, and much more. Each Freight Lift is designed and manufactured to meet the industry safety requirements of ASME B20.1 (conveyors).
Autoquip offers the broadest line of Freight lifts in the industry.
|
|

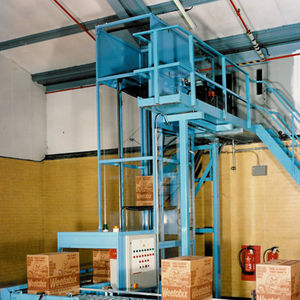

Rapid Lift 4 - Vertical Chain Lift
The Rapid Lift 4 is a continuous 4-strand chain lift with the versatility to meet your needs. Dependable and durable, this conveyor provides many standard features that are additional cost in other similar units.
This system is custom designed to maximize confined factory floor space. It is primarily used as the critical link for interrupted conveyor flow, as well as, transporting products to various levels up to 80 feet high and speeds of up to 100 FPM.
|
|

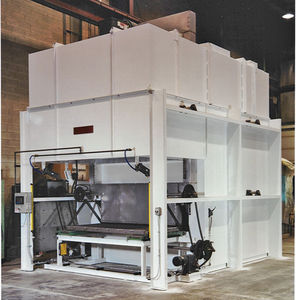

Vertical Reciprocating Lift
STANDARD FEATURES
Utilized to Lift Full Pallets Up/Down to Differing Elevations Heavy Duty Tubular Steel Construction Internal Conveyor; Chain or Roller Available
STANDARD SPECIFICATIONS
FRAME: 4" Square x W Steel Tubing
MOTOR: 230/460V-3PH-60HZ T.E.F.C.
CONVEYOR SPEED: 40, 60 or 80 FPM Standard
VERTICAL SPEED: 115 FPM Standard
PALLET SIZE: 40" x 48" Standard
LOAD CAPACITY: 3.500 Lbs.
FINISH: Powder Coating, Color: Westfalia Gray RAL #7040
|
|
|
|
|
|
Mechanical VRC Material Lift Benefits:
- Lift capacities from 100 to 30,000 lbs.
- Standard platform size up to 12 ft. wide x 30 ft. long
- Tough lifting motor sized for continuous duty
- High service factor gearbox
- Alloy steel drive shaft for durability
- Dual roller chains (instead of cables) for long service life
- Quality, brand-name electrical components
- UL-508A labeled control panel
- Fabricated by AWS D1.1 Certified Welders
- Bracing material provided
- Structural grade fasteners and floor anchors
- Standard units are designed for “bolt-together” installation (field welding not required)
- ‘Gate Closed’ and ‘Ready’ indicator lights on control panel
- Self-diagnostic control system on all multi-level units (more than two stops)
- Momentary contact ‘Call’ and ‘Send’ control buttons at all accessed floor levels
- Instantaneous overload protection (fixed setpoint)
- Broken chain free-fall safety system
- Standard lifting height up to 150 ft. (other heights available)
- Standard speed: 28 fpm (feet per minute) – higher speeds available
- Industrial strength carriage platform to handle heavy point loads
- Fast-acting brake system for crisp, accurate stops
|
|
|

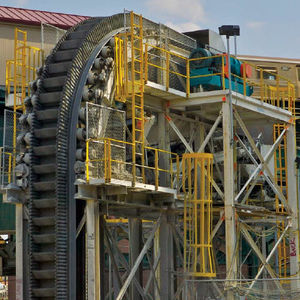

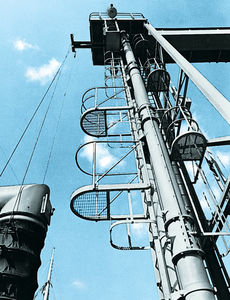

Vertical conveyors are the logical material handling solution when heavy loads must be carried over great vertical distances. With capacities from 1,000 to 4,000 lbs and standard elevations up to 22 feet, vertical conveyors carry loads to lofts, basements, mezzanines, and upper stories safely and efficiently.
|
|

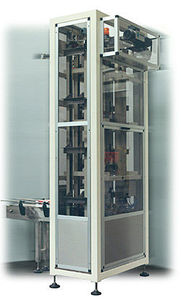

Perfect Veyor is optimal for the vertical conveyance of cases and bags, while maintaining their horizontal positions.

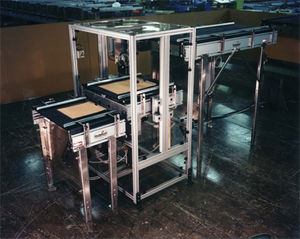

Z type
For entrance and exit of goods in opposite directions
C type
For entrance and exit of goods in the same directions
|
|
