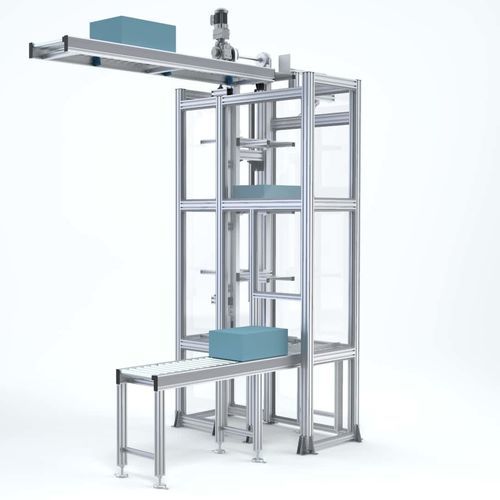

Chain conveyor

driven rolleroverheadvertical

Overview
The chain-synchronized vertical continuous conveyor transports small load carriers (e.g. KLT) and cardboard boxes between production levels with a continuous, non-stop feed. The continuous promotion prevents empty strokes and enables short cycle times from approximately 5 seconds.

Functionality
The system combines horizontal powered roller conveyors with vertical conveyor technology to move goods across multiple levels. Items are conveyed horizontally, transferred to the vertical section and conveyed to the target level where they are received or further routed.

Your benefits

• Cycle times in the paternoster: approx. 5 seconds
• Buffer/accumulation positions can be integrated along the vertical track
• Economical and scalable thanks to standardized modular components

Applications
Suitable for multi-level transport of small load carriers and cardboard boxes in assembly lines, warehousing areas and intralogistics systems; enables ceiling-mounted integrations to save production floor space.

Technical specifications

• Transported goods: small load carriers (e.g. KLT) and cardboard boxes
• Integration: designed for combination with horizontal powered roller conveyors and ceiling-mounted transport paths
• Special feature: continuous feed (prevents empty stroke)
• Cycle time (paternoster): approx. 5 seconds (depending on configuration)
• Buffer stations: integrable on the vertical section
• Design advantage: cost-effective solution using modular automation system components
