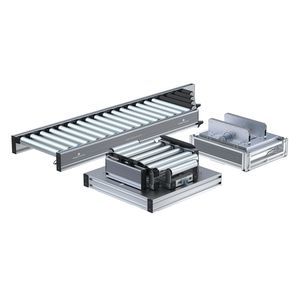

Driven roller conveyor R5S

horizontalstraightV

No matter the direction: With the Robotunits 24V Powered Roller Conveyor, your goods will be transported gently according to your individual requirements. Our multi-faceted system is ideally suited for zero-pressure accumulation conveying of goods, boxes or other containers in industrial applications. Thanks to pre-installed control electronics, the Powered Roller Conveyor can be used immediately. Application • Zero pressure accumulation of products in various sizes. • 24V drive roller • rollers steel galvanized • power transmission through Poly-V belt Drive • brushless 24V DC motor • speed code / speed: • 15 = 2 to 20m/min (Alternative) • 20 = 10 to 28m/min (Standard) • 35 = 15 to 50m/min (Alternative) • temperature range: from +2°C to +40°C • max. continuous current per motorized roller: 2.5A • Ø continuous current per motor roller: 1.5A • conveyor rollers driven by Poly-V belts • roller material: galvanized steel • belt material: chloroprene with PA tension members • frame material: clear anodized aluminum • max. product load: 50kg • Drive • brushless 24V DC motor • speed code / speed: • 15 = 2 to 20m/min (Alternative) • 20 = 10 to 28m/min (Standard) • 35 = 15 to 50m/min (Alternative) • temperature range: from +2°C to +40°C • max. continuous current per motorized roller: 2.5A • Ø continuous current per motor roller: 1.5A • conveyor rollers driven by Poly-V belts • roller material: galvanized steel • belt material: chloroprene with PA tension members • frame material: clear anodized aluminum • max. product load: 50kg Control unit • completely pre-installed incl. sensors Configuration • zero pressure accumulation control logic (not with EtherCAT)
