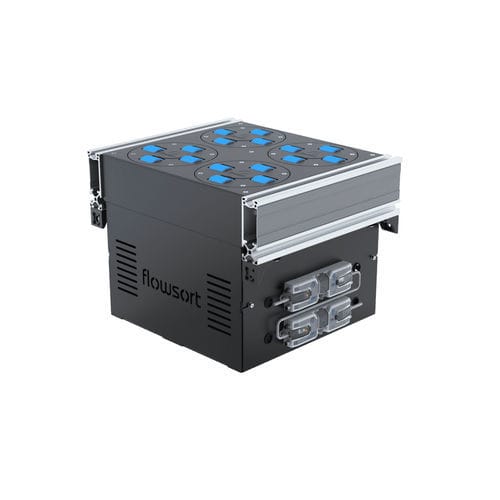

Conveyor sorter R5D

continuousrotary

Sorting of conveyed goods with various sizes. Can be integrated into any conveyor line. For discharging and sorting of conveyed goods The Robotunits Diverter can be used to individually sort conveyed goods of different types and sizes up to 35kg. Facts • continuously adjustable angle of ejection from -90° to +90° • control electronics, operating voltage 24VDC • sorting of up to 6000 products per hour Benefits • enables flexible production flow • easy installation and fast connection to all common PLC systems • faster material flow Drive • brushless 24V DC motor for rotary motion and rollers (2 motorized rollers per conveyor line) • temperature range from +2°C bis +40°C • turning range: – 90° to + 90° • housing material: coated steel • roller material: PU • max. weight of conveyed material: 35kg • max. throughput: 6,000 products per hour • max. roller speed: 90m/min
