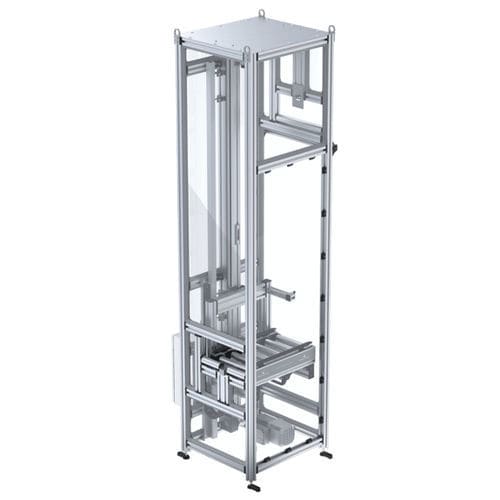

Lift station R5L

Zero pressure accumulation conveying over 2 levels of conveyed goods in different sizes. • enables conveying on two levels with standard stroke up to 5m • for conveyed goods up to 50kg in dimensionally stable totes • speed up to 1m/s, acceleration up to 3m/s² Drive • speed: max. 1m/s • acceleration max. 0.7m/s² • roller conveyor with brushless 24V DC motor • speed: from 10m/min to 28m/min • temperature range: from 2°C to 40°C • frame material: aluminum satin anodized • enclosure with polycarbonate panels optionally with safety tunnel and door Control Unit completely wired incl. sensors and control cabinet Configuration zero pressure accumulation control logic with downstream roller conveyor (not with EtherCAT)
