MTM Power GmbH, the specialist for high-quality power supplies, offers in its program DC/DC converters for railway applications of the series HVC with 150 W and 250 W. These devices are available with an input range of 400…975 VDC and the standard output voltages of 24 VDC and 36 VDC. With these high voltage converters it is possible to supply electronical equipment out of 600 V / 750 V contact wire. The DC/DC converters are used for supplying points, signal lamps and electronic monitoring of the rail net. The specific feature of the series HVC is its use as a self starting module for trams or trolley buses with exhaustive discharged batteries so that the towing process can be avoided. The rugged design together with high-quality components guarantee the high reliability in vehicles even under severe shock and vibration conditions. The high efficiency of 83 % allows an operation without forced ventilation. Moreover the converters work with an ambient temperature range from –40…+85 °C acc. to EN 50 155.
|
|
The Miniature Power DC/DC Converters operate over wide input voltage ranges while maintaining tight output regulation and low ripple.
Safety Features: Overtemperature, Input Under/Overvoltage, Output Overcurrent and Short Circuit Protection.
Up to 10,000 VCD Output
Up to 300 Watts
New dual outputs
NEW Regulated outputs
|
|
| ... products without technical information |
| |
|
|
|
|
The ASX Series is a family of High Performance Switching AC power sources covering the power range from 1.5kVA to 6kVA (12kVA to be released soon). The product line offers both single and three phase models.
Power conversion within the ASX Series is achieved by high frequency pulse width modulation, resulting in cool, quiet and efficient operation.
Key Features Provide Application Versatility
- CE or ETL Listed available on request
-22 Waveform Library - Arbitrary Waveform Generator
-15 to 1,200 Hz Operation - 5,000 Hz Bandwidth
-Precision True-RMS metering of volts, amps, and power for displays and reporting
-RS-232 Interface with SCPI compatibility
-1 Phase/3 Phase Switch Selectable Output from front panel or bus command
-99 stored programs for both static and dynamic Transient Testing
-LabVIEW for Windows®/LabWindows® drivers
-Waveform Creation by Harmonic Synthesis
-Harmonic Analysis (Voltage and Current)
-Metering of RMS and Peak Values
-Continuous Self Calibration (CSC)
-Precision Voltage Programming - 0.05% with CSC engaged
-Programmable Output Impedance
-Up to 0-300 VAC Direct Coupled Out
-Power Levels from 1.5 kVA to 12 kVA
|
|
|
The Meech Model 904 is a constant voltage power supply, designed to provide a 7kV source for Meech AC ionising equipment. It is adjustable to operate at 100-120v or 200-240v input voltages and is available in either 50Hz and 60Hz versions to suit local conditions. The 904 utilises a modified shape of output wave form and is uniquely designed to allow automated manufacture for increased reliability and extended product life.
|
|
| ... products without technical information |
| |
|
The product family PMN/PCMN with low voltage input completes the range of primary switched MTM Power Modules. The modules offer input ranges of either 20/30...60 VAC or 18/30...72 VDC and allow - due to the different types available in this series - efficient solutions in numerous application fields. The vacuum encapsulated devices offer an isolation of 3,3 kVrms and comply to the up-to-date EN standards as regards CE conformity. Further features are rugged design, SMD-technology, automatic 100 % final test and 100-%-burn-in-test. The series PMN/PCMN offers 10 and 30 W constant output power, is short circuit protected, needs no ground load and is designed for PCB-mounting (PMN) or chassis mounting (PCMN).
|
|
|

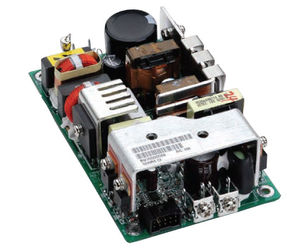

The LRMY series which combines small size, high efficiency, low price and high reliability has been developed to be comprehensive and can be used with full range for input voltage of 85-264Vac, anywhere in the world. As an open frame type it is possible to mount the unit in two side. For the Molexconnectors is possible to have the complete wire harness as option (add WH).
|
|
|
The Meech Model 904 is a constant voltage power supply, designed to provide a 7kV source for Meech AC ionising equipment. It is adjustable to operate at 100-120v or 200-240v input voltages and is available in either 50Hz and 60Hz versions to suit local conditions. The 904 utilises a modified shape of output wave form and is uniquely designed to allow automated manufacture for increased reliability and extended product life.
|
|
The Miniature Power DC/DC Converters operate over wide input voltage ranges while maintaining tight output regulation and low ripple.
Safety Features: Overtemperature, Input Under/Overvoltage, Output Overcurrent and Short Circuit Protection.
Up to 10,000 VCD Output
Up to 300 Watts
New dual outputs
NEW Regulated outputs
|
|
| ... products without technical information |
| |
|
|
|
|
For over 35 years, LDS Nicolet has provided state-of-the-art data acquisition solutions for the test and measurement community. Today, we are the world's premier provider of out-of-the-box, ready to use systems for a diversity of physical and electrical applications. The Genesis system builds on a reputation of high performance acquisition and signal conditioning by providing a flexible, cost effective platform to meet all data acquisition and transient acquisition needs. With the Genesis, LDS Nicolet introduces the future of data acquisition.
Based on the concept of a mainframe with plug-in modules, the Genesis offers a wealth of capabilities. Up to 128 channels can be installed within a rack mainframe (56 channels in the portable tower mainframe), and multiple mainframes can be combined to an even larger system. Up to 400 MegaSample memory per board allows for high definition transient capture. Built-in data transfer acceleration gives you an overview of MegaSamples of data within seconds. With the world's best performance signal conditioning and 16-bit accuracy, Genesis is the right solution for your difficult measurement task.
Genesis Features
Combines Transient Recorder and Streaming Data Acquisition Capabilities
Programmable High-Performance Signal Conditioning
Sample Rates from
200 kS/s to 100 MS/s per Channel
Transient RAM to 400 MS per card, 12.8 GB per System Max.
Tower Mainframe with 7 slots or Rack Version with 16 slots (see lower picture)
Master Slave Option for Synchronized Acquisition on up to 1080 Channels
Unlimited Recording Size and Duration
IRIG and GPS Time Code Options
Local SCSI Drive Storage for Safety Critical Applications
|
|
|
|
|
|
For over 35 years, LDS Nicolet has provided state-of-the-art data acquisition solutions for the test and measurement community. Today, we are the world's premier provider of out-of-the-box, ready to use systems for a diversity of physical and electrical applications. The Genesis system builds on a reputation of high performance acquisition and signal conditioning by providing a flexible, cost effective platform to meet all data acquisition and transient acquisition needs. With the Genesis, LDS Nicolet introduces the future of data acquisition.
Based on the concept of a mainframe with plug-in modules, the Genesis offers a wealth of capabilities. Up to 128 channels can be installed within a rack mainframe (56 channels in the portable tower mainframe), and multiple mainframes can be combined to an even larger system. Up to 400 MegaSample memory per board allows for high definition transient capture. Built-in data transfer acceleration gives you an overview of MegaSamples of data within seconds. With the world's best performance signal conditioning and 16-bit accuracy, Genesis is the right solution for your difficult measurement task.
Genesis Features
Combines Transient Recorder and Streaming Data Acquisition Capabilities
Programmable High-Performance Signal Conditioning
Sample Rates from
200 kS/s to 100 MS/s per Channel
Transient RAM to 400 MS per card, 12.8 GB per System Max.
Tower Mainframe with 7 slots or Rack Version with 16 slots (see lower picture)
Master Slave Option for Synchronized Acquisition on up to 1080 Channels
Unlimited Recording Size and Duration
IRIG and GPS Time Code Options
Local SCSI Drive Storage for Safety Critical Applications
|
|
|
|
