Step-up DC/DC converter

regulatedfor telecommunications equipmentindustrial

Product overview

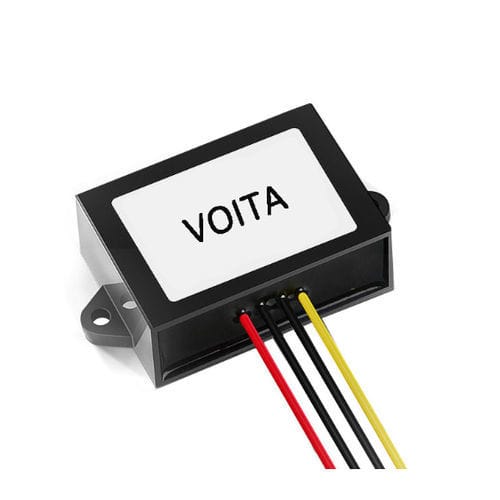

The 12V→36V step-up DC-DC converter is a boost power module intended to generate a stable 36VDC output from nominal 12VDC sources. Multiple current ratings are available to match different load requirements. The unit is suitable for industrial and control applications requiring a regulated higher-voltage DC rail.

Key electrical specifications

• Input voltage: 12 VDC (operating range 9 V – 20 V)
• Output voltage: 36 VDC ±0.25 V
• Available current ratings: 1 A, 2 A, 3 A, 5 A, 10 A, 20 A, 30 A

Mechanical sizes & weights

• 1–3 A: 58 × 40 × 22 mm / 0.097 kg
• 5 A: 74 × 74 × 32 mm / 0.26 kg
• 10 A: 100 × 80 × 38 mm / 0.5 kg
• 20 A: 160 × 113 × 35 mm / 1.3 kg
• 30 A: 150 × 130 × 50 mm / 1.6 kg

Certifications
CE / FCC / ROHS

Applications

• Industrial control systems
• Battery-powered equipment requiring higher DC bus voltage
• Telecommunications and instrumentation

Characteristics / Technical specifications

• Function: step-up (boost) DC-DC converter
• Nominal input voltage: 12 VDC
• Input operating range: 9 V – 20 V
• Fixed output voltage: 36 VDC (±0.25 V)
• Selectable current ratings: 1–30 A (see available options)
• Mechanical dimensions and weight vary by rating (see Mechanical sizes & weights)
• Compliance: CE, FCC, ROHS
