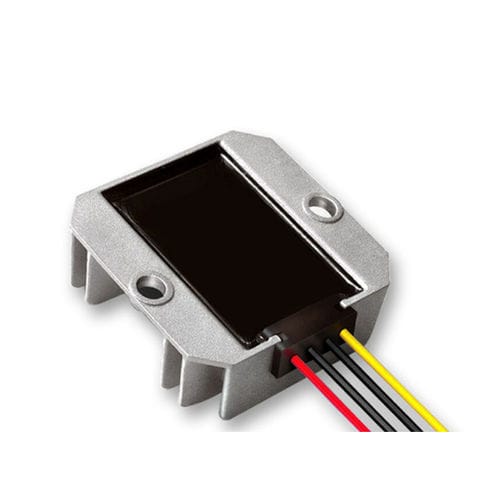

Non-isolated DC/DC converter

step-upstep-downencapsulated

Short description
Step-up/step-down (boost/buck) DC-DC converter accepting DC 8V–40V input and providing regulated DC 12V ±0.25V output. Available output currents: 1A–25A across three size groups. Non-isolated topology, IP67 ingress protection, typical efficiency up to 96%. Certificates: CE, FCC, RoHS.

Features

• Synchronous rectification technology
• Internal resistance capacitor filter for high-temperature tolerance
• Organic silicone packaging
• Integrated protection: overheat and overcurrent protection
• Shock-, drop-, moisture- and dust-resistant construction
• High efficiency up to 96%
• Non-isolated input-output topology
• Ingress protection rating IP67 (waterproof)

Attention

• Follow label and wiring instructions during installation; do not reverse polarity.
• Do not connect input and output in reverse; this may damage the device.
• Ensure load power does not exceed the converter's maximum rating.

Product details / Table
Product name: 8V/40V DC to 12V DC Converter
Sizes & weights: 1A–3A: 66×58×23 mm / 0.15 kg; 6A–10A: 74×74×32 mm / 0.26 kg; 15A–25A: 100×80×38 mm / 0.5 kg
Output current options: 1A, 3A, 6A, 10A, 15A, 20A, 25A
Corresponding output power: 12W, 36W, 72W, 120W, 180W, 240W, 300W
Input voltage range: DC 8V–40V
Nominal output voltage: DC 12V ±0.25V
Typical transfer efficiency: 90%–96%
Overheat protection threshold: 150℃
Operating temperature: -20℃ to 85℃
Ingress protection: IP67
Topology: Non-isolated

Model / Range examples (from product matrix)
12V/24V to 5V — Output current: 1A–100A
24V to 12V — Output current: 1A–300A
24V to 13.8V — Output current: 1A–120A
48V to 12V — Output current: 1A–150A
48V to 24V — Output current: 1A–125A
48V to 13.8V — Output current: 1A–80A
60V/72V to 12V — Output current: 1A–85A
36V/48V to 5V — Output current: 1A–20A
60V/72V/80V to 5V — Output current: 1A–25A
100V/120V to 12V — Output current: 1A–30A
100V/120V to 24V — Output current: 1A–20A
144V to 5V — Output current: 1A–25A
144V to 12V — Output current: 1A–30A
144V to 24V — Output current: 1A–25A
24VAC to 12VDC — Output current: 1A–10A
36VAC to 12VDC — Output current: 1A–10A
24V/12VAC to 5VDC — Output current: 1A–10A
Other buck, boost and buck-boost ranges available across multiple input/output combinations and output currents.

caractéristiques / spécifications techniques

• Input voltage range: DC 8V–40V
• Nominal output voltage: DC 12V ±0.25V
• Output current range (series): 1A–25A (variants available)
• Output power range: 12W–300W (depending on model)
• Typical efficiency: 90%–96%
• Overheat protection threshold: 150℃
• Operating temperature: -20℃ to 85℃
• Ingress protection: IP67
• Topology: Non-isolated input-output
• Protections: overheat and overcurrent; follow polarity-aware installation
• Construction notes: internal resistance capacitor filter, organic silicone packaging, synchronous rectification
• Certificates: CE, FCC, RoHS
