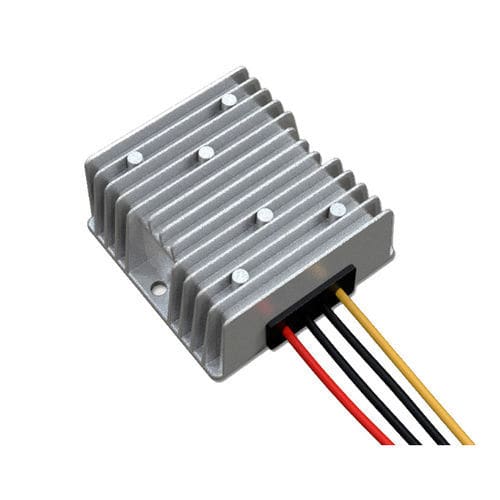

Regulated DC/DC converter

non-isolatedencapsulatedwaterproof

Short description
Compact non-isolated DC-DC converter that automatically boosts or bucks an 8–40V DC input to a regulated 13.8V ±0.25V output. Available in 5A–25A variants and designed for IP67 protection.

Features

• Synchronous rectification technology
• Internal low-ESR capacitor filter for high-temperature tolerance
• Organic silicone encapsulation
• Smart chip protections: over-temperature and over-current
• Shock-, drop-, moisture- and dust-resistant design
• High efficiency: typical up to 96%
• Non-isolated topology (input and output share common reference)
• Ingress protection: IP67 (waterproof)

Attention

• Follow label instructions for installation; do not reverse polarity (positive/negative), otherwise the module and components may be damaged
• Do not connect input and output in reverse; device may be damaged
• Ensure load power does not exceed the converter's maximum rated power

Product table
Product Name: 8V/40V DC to 13.8V DC Converter
Size: 74×74×32 mm (5A–10A) ; 100×80×38 mm (15A–25A)
Output current: 5A, 10A, 15A, 20A, 25A
Output power: 69W (5A), 138W (10A), 207W (15A), 276W (20A), 345W (25A)
Weight: 0.25 kg (5A–10A) ; 0.5 kg (15A–25A)
Input voltage: DC 8–40V
Typical efficiency: up to 96% (measured); transfer efficiency noted ~90% depending on load
Output voltage: DC 13.8V ±0.25V
Overheating protection: 150°C
Operating temperature: -20°C to 85°C
Ingress protection: IP67

Technical specifications

• Input voltage range: 8–40 V DC
• Nominal output voltage: 13.8 V DC ±0.25 V
• Available output currents: 5 A, 10 A, 15 A, 20 A, 25 A
• Corresponding output powers: 69 W, 138 W, 207 W, 276 W, 345 W
• Dimensions: 74×74×32 mm (smaller variants), 100×80×38 mm (larger variants)
• Weight: 0.25 kg (smaller variants), 0.5 kg (larger variants)
• Efficiency: typical up to 96% (see product table for transfer efficiency reference)
• Overheat protection threshold: 150°C
• Operating temperature range: -20°C to 85°C
• Ingress protection rating: IP67
• Topology/isolation: non-isolated between input and output
• Protections: smart-chip over-temperature and over-current protection
• Additional: synchronous rectification; internal capacitor filter for high-temperature tolerance; organic silicone encapsulation; shock/drop/moisture/dust resistant design
