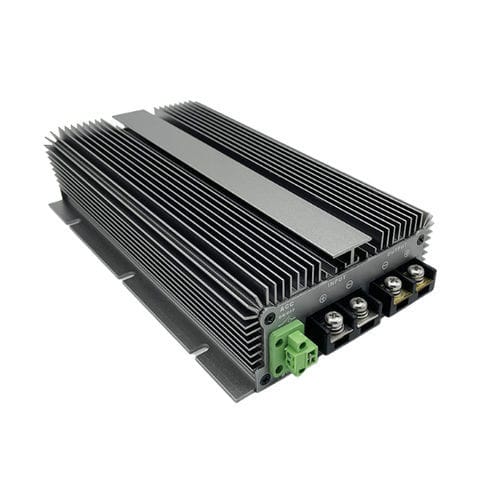

Non-isolated DC/DC converter

regulatedstep-downencapsulated

Short description
Input voltage: DC72V (30V–90V). Output voltage: DC24V ±0.25V. Modular family covering 5A up to 60A outputs for industrial DC power systems.

Sizes & Weights (by output current)
5A–10A: 74 × 74 × 32 mm / 0.26 kg
20A: 100 × 80 × 38 mm / 0.5 kg
30A: 160 × 113 × 35 mm / 0.7 kg
40A–50A: 150 × 130 × 50 mm / 1.5 kg
60A: 220 × 130 × 50 mm / 3 kg

Features

• Synchronous rectification topology for high conversion efficiency
• Internal low-resistance capacitor filter with elevated temperature tolerance
• Organic silicone potting for enhanced moisture protection
• Chip-based smart protections: overheat and overcurrent protection
• Shock, drop, moisture and dust resistance
• High efficiency: feature spec up to 96%; typical models show ~90% conversion efficiency
• Non-isolated input-to-output topology
• Ingress protection: IP67 (waterproof)

Attention / Handling
1. Respect label indications during installation; do not reverse polarity (positive/negative) to avoid damage to the module or components.
2. Do not connect input and output in reverse; this will cause damage.
3. Ensure load power does not exceed the converter's maximum rated power.

Table: 72V to 24V (5A–30A)
Product name: 72V DC to 24V DC Converter
Size options: 75 × 75 × 32 mm; 100 × 80 × 38 mm; 160 × 113 × 35 mm
Output current: 5A; 10A; 20A; 30A
Output power: 120W; 240W; 480W; 720W
Weight: 0.26 kg; 0.5 kg; 0.7 kg
Input voltage: DC72V (30V–90V)
Conversion efficiency: 90% (typical)
Output voltage: DC24V ±0.25V
Overheat protection: 150℃
Operating temperature: -20℃ to 85℃
Ingress protection: IP67

Table: 72V to 24V (40A–60A)
Product name: 72V DC to 24V DC Converter
Size options: 150 × 130 × 50 mm; 220 × 130 × 50 mm
Output current: 40A; 50A; 60A
Output power: 960W; 1200W; 1440W
Weight: 1.5 kg; 3 kg
Input voltage: DC72V (30V–90V)
Conversion efficiency: 90% (typical)
Output voltage: DC24V ±0.25V
Overheat protection: 150℃
Operating temperature: -20℃ to 85℃
Ingress protection: IP67

Product matrix (models / typical output current ranges)
12V/24V to 5V: 1A–100A; 5V to 12V: 1A–20A; 24V to 12V: 1A–300A; 12V to 19V: 1A–20A; 24V to 13.8V: 1A–120A; 12V to 28V: 1A–20A; 48V to 12V: 1A–150A; 12V to 36V: 1A–60A; 48V to 24V: 1A–125A; 12V to 36V: 1A–50A; 48V to 13.8V: 1A–80A; 12V to 48V: 1A–40A; 60V/72V to 12V: 1A–85A; 12V to 56V: 1A–10A; 36V/48V to 5V: 1A–20A; 12V to 60V: 1A–10A; 60V/72V/80V to 5V: 1A–25A; 12V to 72V: 1A–5A; 100V/120V to 12V: 1A–30A; 24V to 36V: 1A–10A; 100V/120V to 24V: 1A–20A; 24V to 48V: 1A–80A; 144V to 5V: 1A–25A; 144V to 12V: 1A–30A; 144V to 24V: 1A–25A; 12V–12V: 1A–25A; 24VAC to 12VDC: 1A–10A; 13.8V to 13.8V: 1A–25A; 36VAC to 12VDC: 1A–10A; 24V to 24V: 1A–40A; 24V/12VAC to 5VDC: 1A–10A; 48V to 48V: 1A–5A

Certificates
CE / FCC / ROHS

Technical specifications

• Family: 72V DC to 24V DC step-down converter family
• Input voltage range: DC72V (30V–90V)
• Output voltage: DC24V ±0.25V
• Output current options: 5A, 10A, 20A, 30A, 40A, 50A, 60A (other ranges per matrix)
• Output power range examples: 120W up to 1440W depending on model
• Conversion efficiency: up to 96% (feature); commonly ~90% in typical models
• Overheat protection threshold: 150℃
• Operating temperature: -20℃ to 85℃
• Ingress protection: IP67
• Topology: synchronous rectification; non-isolated input-output
• Packaging: organic silicone encapsulation for moisture protection
• Protections: overheat protection, overcurrent protection; chip-based smart protection
• Mechanical outlines & weights: multiple mechanical options depending on current rating (see sizes & weights block)
