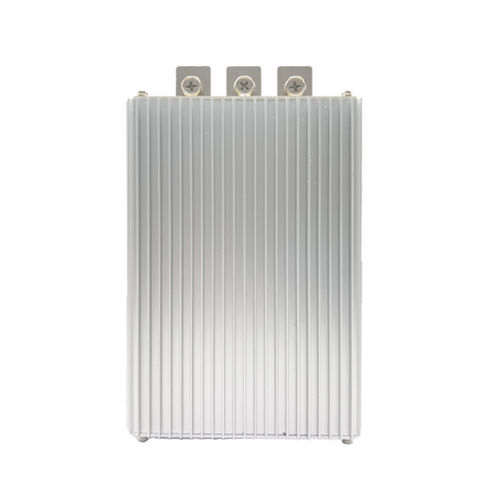

Regulated DC/DC converter

step-downnon-isolatedencapsulated

Short description
Input Voltage: DC48V (30V-60V)
Output Voltage: DC24V ±0.25V
Sizes & Weight by current range: 1A-3A: 66×58×23 mm / 0.1 kg; 5A-15A: 74×74×32 mm / 0.26 kg; 20A-30A: 100×80×38 mm / 0.5 kg; 40A: 150×127×63 mm / 1.6 kg; 50A-60A: 220×127×63 mm / 2.3 kg
Certificates: CE / FCC / ROHS

Features

• Synchronous rectification technology
• Internal high-temperature capacitor filter
• Organic silicone encapsulation
• Chip protection: over-temperature and over-current protection
• Shock-, drop-, moisture- and dust-resistant construction
• High efficiency: up to 96%
• Non-isolated design between input and output
• Waterproof rating: IP67

Attention

• Strictly follow label requirements for installation; do not reverse positive and negative polarity to avoid damage.
• Do not connect input and output in reverse; the module may be damaged.
• Ensure load power does not exceed the converter's maximum rated capacity.

48V to 24V (1A-30A)
Product Name: 48VDC to 24VDC Converter
Sizes: 1A-3A: 66×58×23 mm; 5A-15A: 74×74×32 mm; 20A-30A: 100×80×38 mm
Output current options: 1A, 3A, 5A, 10A, 15A, 20A, 30A
Output power (corresponding): 24W, 72W, 120W, 240W, 360W, 480W, 720W
Weight by size: 1A-3A: 100 g; 5A-15A: 260 g; 20A-30A: 500 g
Input voltage: DC48V (30V-60V)
Transfer efficiency: 90% (typical)
Output voltage: DC24V ±0.25V
Overheating protection: 150°C
Operating temperature: -20°C to 85°C
Waterproof: IP67

48V to 24V (40A-60A)
Product Name: 48VDC to 24VDC Converter
Sizes: 40A: 150×127×63 mm; 50A-60A: 220×127×63 mm
Output current options: 40A, 50A, 60A
Output power (corresponding): 960W, 1200W, 1440W
Weight: 40A: 1.6 kg; 50A-60A: 2.3 kg
Input voltage: DC48V (30V-60V)
Transfer efficiency: 90% (typical)
Output voltage: DC24V ±0.25V
Overheating protection: 150°C
Operating temperature: -20°C to 85°C
Waterproof: IP67

Model range summary (selection)
12V/24V to 5V: 1A-100A
24V to 12V: 1A-300A
24V to 13.8V: 1A-120A
48V to 12V: 1A-150A
48V to 24V: 1A-125A
48V to 13.8V: 1A-80A
60V/72V to 12V: 1A-85A
36V/48V to 5V: 1A-20A
60V/72V/80V to 5V: 1A-25A
100V/120V to 12V: 1A-30A
100V/120V to 24V: 1A-20A
144V to 5V: 1A-25A
144V to 12V: 1A-30A

Specifications / technical data

• Input voltage range: DC48V (30V-60V)
• Output voltage: DC24V ±0.25V
• Available output current range: 1A up to 60A (product family offers variants beyond)
• Output power examples: 24W (1A) up to 1440W (60A)
• Transfer efficiency: typically 90% (table); feature section lists up to 96%
• Overheating protection threshold: 150°C
• Operating temperature: -20°C to 85°C
• Waterproof rating: IP67
• Protections: over-temperature, over-current; polarity-sensitive installation
• Construction: organic silicone encapsulation; internal high-temp capacitor filter; synchronous rectification
• Non-isolated design between input and output
• Certificates: CE, FCC, ROHS
