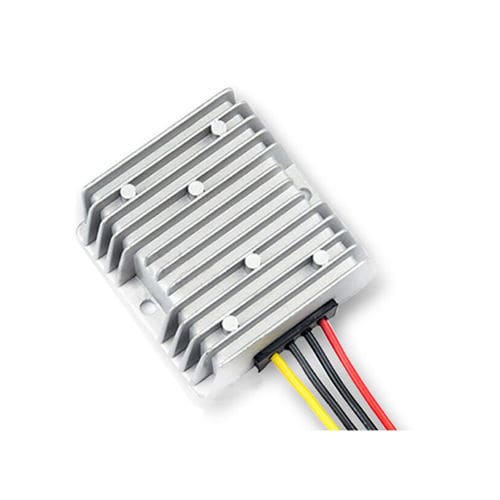

Non-isolated DC/DC converter

step-upregulatedencapsulated

Short description
Input voltage: 12VDC (operating range 9V–20V)
Output voltage: 48VDC ±0.25V
Certificates: CE / FCC / ROHS

Sizes & Weights (by output current)

• 1–1.5A: 58×40×22 mm / 0.097 kg
• 3–5A: 74×74×32 mm / 0.26 kg
• 6–10A: 100×80×38 mm / 0.5 kg
• 15A: 150×127×63 mm / 1.6 kg
• 20–30A: 220×127×63 mm / 2.3 kg
• 40A: 220×156×65 mm / 2.9 kg

Feature

• Synchronous rectification technology
• Internal resistance capacitor filter, high temperature resistant
• Organic silicone potting/packaging
• Chip smart protection: over-temperature and overcurrent protection
• Shock, drop, moisture and dust resistant
• High efficiency: up to 96% (table values may list 90% depending on model)
• Non-isolated input to output
• Waterproof rating: IP67

Attention

• Follow label requirements for installation; do not reverse polarity
• Do not connect input and output in reverse
• Do not exceed the converter's maximum rated output power

12V to 48V (1A–10A) — Technical table

• Product name: 12V DC to 48V DC Converter
• Example sizes: 58×40×22 mm | 74×74×32 mm | 100×80×38 mm
• Output currents (examples): 1A, 1.5A, 3A, 5A, 6A, 10A
• Corresponding output power: 48W, 72W, 144W, 240W, 288W, 480W
• Corresponding weight examples: 97 g, 260 g, 500 g
• Input voltage: DC12V (9V–20V)
• Conversion efficiency (table): 90% (see feature for up to 96%)
• Output voltage: DC48V ±0.25V
• Overheating protection threshold: 150℃
• Operating temperature: -20℃ to 85℃
• Ingress protection: IP67

12V to 48V (15A–40A) — Technical table

• Product name: 12V DC to 48V DC Converter
• Example sizes: 150×127×63 mm | 220×127×63 mm | 220×156×65 mm
• Output currents (examples): 15A, 20A, 30A, 40A
• Corresponding output power: 720W, 960W, 1440W, 1920W
• Corresponding weight examples: 1.6 kg, 2.3 kg, 2.9 kg
• Input voltage: DC12V (9V–20V)
• Conversion efficiency (table): 90% (see feature for up to 96%)
• Output voltage: DC48V ±0.25V
• Overheating protection threshold: 150℃
• Operating temperature: -20℃ to 85℃
• Ingress protection: IP67

Technical specifications

• Input voltage: DC12V (operating range 9V–20V)
• Output voltage: DC48V ±0.25V
• Output current range (product family): 1A to 40A (models: 1A, 1.5A, 3A, 5A, 6A, 10A, 15A, 20A, 30A, 40A)
• Output power range: approx. 48W to 1920W depending on model
• Conversion efficiency: table value 90% / up to 96% per product feature
• Over-temperature protection: 150℃
• Protection features: over-temperature, overcurrent (chip smart protection)
• Filtering: internal resistance capacitor filter (high-temperature resistant)
• Packaging: organic silicone potting
• Isolation: non-isolated between input and output
• Ingress protection: IP67 (waterproof)
• Operating temperature: -20℃ to 85℃
• Applicable series: Boost DC Converter / DC-DC converter family
