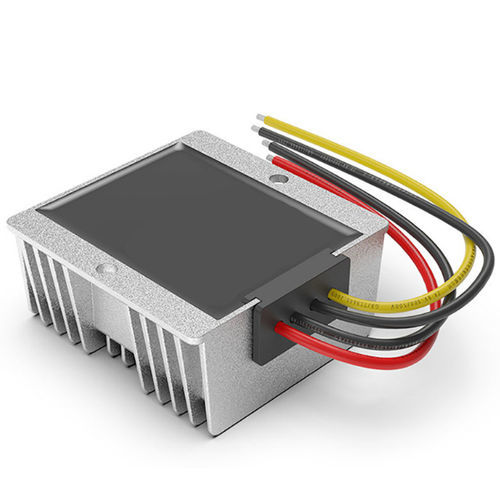

Non-isolated DC/DC converter

regulatedstep-upencapsulated

Short description
Input Voltage: DC12V (9V–20V)
Output Voltage: DC56V ±0.25V
Size & Weight: 74×74×32 mm / 0.26 kg (also listed as 75×75×32 mm / 0.6 kg)
Certificates: CE / FCC / ROHS

Features

• Synchronous rectification technology for high conversion efficiency
• Internal resistance-capacitor filter capable of withstanding high temperature
• Organic silicone packaging technology
• Chip smart protection: overheat and overcurrent protection
• Mechanical protection: anti-shock, anti-drop, moisture and dust resistance
• High efficiency: up to 96% (some listings indicate transfer efficiency 90%)
• Non-isolated input to output
• Ingress protection rating: IP67 (waterproof)

Attention

• Follow label instructions for installation; do not reverse polarity (positive/negative) to avoid module or component damage
• Do not connect input and output in reverse
• Ensure load power does not exceed the converter's maximum withstand value

Product table
Product Name: 12V DC to 56V DC Converter
Size: 75×75×32 mm (table) / 74×74×32 mm (short description)
Product image: 747432.jpg (available in gallery)
Output current: 3A (example unit); product family range: 1A–3A
Output power: 168W
Weight: 0.6 kg (table) / 0.26 kg (short description)
Input voltage: DC12V (9V–20V)
Transfer efficiency: 90% (table) / Efficiency up to 96% (features)
Output voltage: DC56V ±0.25V
Overheating protection: 150°C
Working temperature: −20°C to 85°C
Ingress protection: IP67

Technical specifications

• Input Voltage: DC12V (9V–20V)
• Output Voltage: DC56V ±0.25V
• Output Current: 1A–3A (product family); example unit: 3A
• Output Power: 168W
• Size: 74×74×32 mm (short description) / 75×75×32 mm (table)
• Weight: 0.26 kg (short description) / 0.6 kg (table)
• Efficiency: up to 96% (features) / transfer efficiency listed as 90% (table)
• Overheating protection threshold: 150°C
• Operating temperature: −20°C to 85°C
• Protections: overcurrent protection, anti-overheat (chip smart protection)
• Topology: non-isolated between input and output
• Ingress protection: IP67 (waterproof)
• Certificates: CE, FCC, ROHS
