Step-up DC/DC converter
regulatednon-isolatedencapsulated

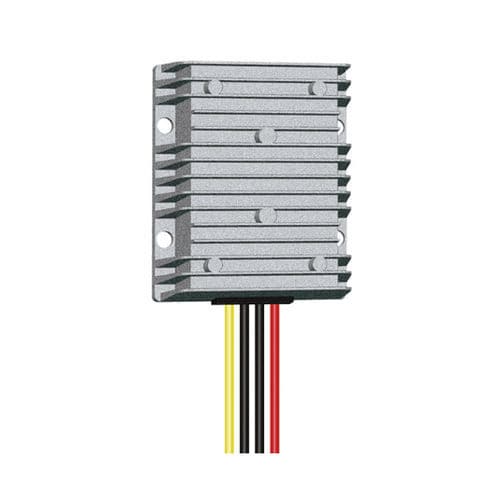

Step-up DC/DC converter - Guangzhou Voita Electronic Technology Co., Ltd. - regulated / non-isolated / encapsulated
Step-up DC/DC converter - Guangzhou Voita Electronic Technology Co., Ltd. - regulated / non-isolated / encapsulated
Add to favorites
Compare this product
Go to the Guangzhou Voita Electronic Technology Co., Ltd. website for more information

Characteristics

Electrical characteristics
step-up, regulated, non-isolated
Configuration
encapsulated
Applications
for telecommunications equipment, industrial, vehicle, for mobile devices
Other characteristics
compact, switching, with overcurrent protection, single-output, high-current, capacitor backed, IP67, with overheating protection
Input voltage

Max.: 20 V

Min.: 9 V

Output voltage

Max.: 19.25 V

Min.: 18.75 V

Power

Max.: 380 W
(0.52 hp)

Min.: 57 W
(0.08 hp)

Description

Product overview
Compact DC-DC boost converter that raises a 12V nominal input (9–20V range) to a regulated 19V ±0.25V output. Available in multiple current ratings from 3A to 20A. Non-isolated design with IP67 protection for harsh industrial and mobile environments.

Key specifications
  • Input voltage: 12V DC (9–20V)
  • Output voltage: 19V DC ±0.25V
  • Output current (models): 3A, 5A, 8A, 10A, 15A, 20A
  • Output power: 57W / 95W / 152W / 190W / 285W / 380W
  • Efficiency: up to 96% (typical 90%)
  • Operating temperature: -20°C to 85°C
  • Protection: overheat (150°C), overcurrent
  • Ingress protection: IP67
  • Certificates: CE, FCC, RoHS


Mechanical data
  • 3A: 66×58×23 mm — 100 g
  • 5A–10A: 74×74×32 mm — 260 g
  • 15A–20A: 100×80×38 mm — 500 g


Design & construction
  • Synchronous rectification topology
  • Internal low-ESR capacitor filter for high-temperature endurance
  • Organic silicone encapsulation
  • Non-isolated input-to-output configuration


Installation & safety
  • Respect the polarity markings; do not reverse positive and negative terminals
  • Do not connect input and output in reverse
  • Ensure load power does not exceed the converter rating
  • Follow grounding and wiring best practices for non-isolated modules


Applications
  • Industrial equipment and control systems
  • Vehicle and mobile power supplies
  • Telecommunications, instrumentation and field devices
