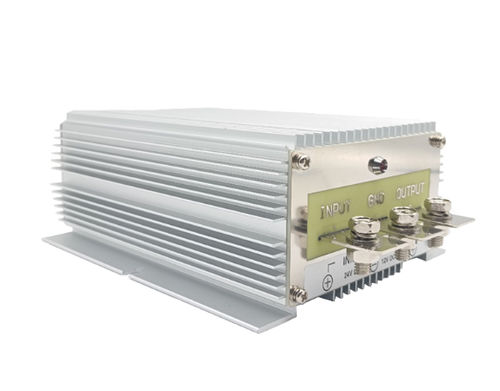

Non-isolated DC/DC converter

regulatedstep-upencapsulated

Product overview

• Input voltage: DC 24V (range 18V–45V)
• Output voltage: DC 48V ±0.25V
• Available output current ratings: 1A, 1.5A, 3A, 5A, 6A, 10A, 15A, 20A, 30A, 40A, 50A

Size & Weight (by current rating)

• 1A–1.5A: 58 × 40 × 22 mm / 0.097 kg
• 3A–6A: 74 × 74 × 32 mm / 0.26 kg
• 10A–20A: 100 × 80 × 38 mm / 0.5 kg
• 30A: 150 × 127 × 63 mm / 1.6 kg
• 40A–50A: 220 × 127 × 63 mm / 2.3 kg

Features

• Synchronous rectification technology
• Internal resistance capacitor filter — high temperature resistant
• Organic silicone potting/packaging
• Chip-based protections: over-temperature and overcurrent protection
• Shock-, drop-, moisture- and dust-resistant design
• High efficiency (up to 96%)
• Non-isolated input-output topology
• Ingress protection: IP67

Attention

• Install following label polarity: do not reverse positive and negative terminals or module/components may be damaged.
• Do not connect input and output in reverse (may damage or burn the unit).
• Ensure load power does not exceed the converter's maximum rated capacity.

Table — 24V to 48V (1A–6A)
Product Name: 24V DC to 48V DC Converter
Size: 58×40×22 mm | 74×74×32 mm
Product image: (embedded on product page)
Output current: 1A | 1.5A | 3A | 5A | 6A
Output power: 48W | 72W | 144W | 240W | 288W
Weight: 97 g | 260 g
Input voltage: DC 24V (18V–45V)
Transfer efficiency: 90% (typical, see table); up to 96% peak
Output voltage: DC 48V ±0.25V
Overheating protection: 150℃
Operating temperature: -20℃ to 85℃
Waterproof: IP67

Table — 24V to 48V (10A–50A)
Product Name: 24V DC to 48V DC Converter
Size: 100×80×38 mm | 150×127×63 mm | 220×127×63 mm
Product image: (embedded on product page)
Output current: 10A | 15A | 20A | 30A | 40A | 50A
Output power: 480W | 720W | 960W | 1440W | 1920W | 2400W
Weight: 0.5 kg | 1.6 kg | 2.3 kg
Input voltage: DC 24V (18V–45V)
Transfer efficiency: 90% (typical, see table); up to 96% peak
Output voltage: DC 48V ±0.25V
Overheating protection: 150℃
Operating temperature: -20℃ to 85℃
Waterproof: IP67

Additional product matrix (selected entries from product category table)
Various DC-DC converter models and output current ranges are listed on the product page, e.g.: 12V/24V to 5V (1A–100A), 24V to 12V (1A–300A), 48V to 12V (1A–150A), 48V to 24V (1A–125A), plus many other input/output combinations and current ranges across product families.

Technical specifications

• Product name: 24V DC to 48V DC Converter
• Type: step-up (boost) DC-DC converter
• Input voltage range: DC 18V–45V (nominal 24V)
• Output voltage: DC 48V ±0.25V
• Available output currents: 1A, 1.5A, 3A, 5A, 6A, 10A, 15A, 20A, 30A, 40A, 50A
• Output power range: 48W up to 2400W depending on model
• Typical efficiency: up to 96% (feature); 90% typical in product tables
• Overheat protection threshold: 150℃
• Operating temperature range: -20℃ to 85℃
• Protections & robustness: overcurrent protection; shock-, drop-, moisture- and dust-resistant
• Packaging: organic silicone potting
• Filtering: internal resistance capacitor filter (high temperature resistant)
• Isolation: non-isolated between input and output
• Ingress protection: IP67
• Certifications: CE / FCC / ROHS
