Non-isolated DC/DC converter
step-upregulatedencapsulated

Non-isolated DC/DC converter - Guangzhou Voita Electronic Technology Co., Ltd. - step-up / regulated / encapsulated
Non-isolated DC/DC converter - Guangzhou Voita Electronic Technology Co., Ltd. - step-up / regulated / encapsulated
Non-isolated DC/DC converter - Guangzhou Voita Electronic Technology Co., Ltd. - step-up / regulated / encapsulated - image - 2
Non-isolated DC/DC converter - Guangzhou Voita Electronic Technology Co., Ltd. - step-up / regulated / encapsulated - image - 3
Non-isolated DC/DC converter - Guangzhou Voita Electronic Technology Co., Ltd. - step-up / regulated / encapsulated - image - 4
Add to favorites
Compare this product
Go to the Guangzhou Voita Electronic Technology Co., Ltd. website for more information

Characteristics

Electrical characteristics
non-isolated, step-up, regulated
Configuration
encapsulated
Applications
industrial
Other characteristics
waterproof, with overheating protection, regulated, IP67, with overcurrent protection, compact, high-power, single-output, high-current, CE
Input voltage

Max.: 20 V

Min.: 9 V

Output voltage

Max.: 24.25 V

Min.: 23.75 V

Power

Max.: 1,440 W
(1.96 hp)

Min.: 24 W
(0.03 hp)

Description

Overview

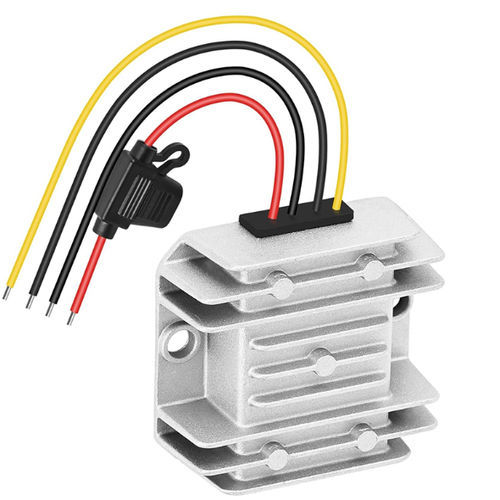

High-efficiency DC-DC boost converter designed to step 12V nominal input to a regulated 24V output (DC24V ±0.25V). Available in multiple output-current models from 1A to 60A. Non-isolated topology with IP67 protection for use in demanding industrial environments.

Key features
  • Synchronous rectification for improved conversion efficiency
  • Internal resistance-capacitor filter and organic silicone packaging for high-temperature endurance
  • Compact and high-power form factors: 1A–15A (compact) and 20A–60A (high-power)
  • Environmental protection: anti-shock, anti-drop, moisture- and dust-resistant
  • High transfer efficiency (typ. up to 96% on some models; 90% listed for higher-current entries)
  • Waterproof rating IP67


Protection & certifications
  • On-board protection chip: over-temperature and over-current protection
  • Operational temperature range: -20°C to 85°C; overheat threshold ~150°C
  • Certificates: CE / FCC / RoHS


Models & mechanical data
  • Model groups: 1A–15A (compact) and 20A–60A (high-power)
  • Output power examples (1A–15A): 1A→24W; 2A→48W; 3A→72W; 5A→120W; 6A→144W; 8A→192W; 10A→240W; 12A→288W; 15A→360W
  • 1A–3A size/weight: 66×57×22 mm / 0.1 kg; 5A–8A: 74×74×32 mm / 0.26 kg
  • 20A–60A output power examples: 20A→480W; 25A→600W; 30A→720W; 40A→960W; 50A→1200W; 60A→1440W
  • 20A–25A size/weight: 100×80×38 mm / 0.5 kg; 30A–40A: 150×127×63 mm / 1.6 kg; 50A–60A: 220×127×63 mm / 2.5 kg


Electrical specifications
  • Input: nominal DC12V (page lists input ranges 9V–16V and 9V–20V for some entries)
  • Output: DC24V ±0.25V
  • Topology: non-isolated (input and output share reference)
  • Typical transfer efficiency: up to 96% (model-dependent); 90% noted for several high-current models
  • Protection: over-temperature and over-current via protection chip


Installation & precautions
  • Follow label and datasheet for correct wiring; do not reverse polarity (reverse connection may damage the module)
  • Do not connect input and output terminals in reverse; incorrect connections can cause failure or fire
  • Ensure load power does not exceed converter's maximum continuous rating for the chosen model
