Non-isolated DC/DC converter

regulatedencapsulatedsingle-output

Product overview
DC-DC converter that stabilizes DC 9-40V (operating 8-40V) to a fixed DC 24V output. Available output currents: 2A, 3A, 5A, 6A, 10A, 15A, 25A. Non-isolated between input and output. Ingress protection: IP67.

Key features

• Synchronous rectification technology
• Internal resistance capacitor filter for high temperature tolerance
• Organic silicone potting/packaging
• Chip-based protection: overtemperature and overcurrent
• Shock-, drop-, moisture- and dust-resistant design
• Conversion efficiency up to 96% (feature list)
• Non-isolated input/output topology
• Waterproof rating IP67

Technical specifications

• Input voltage range: DC 8V–40V (nominal 9V/40V)
• Output voltage: DC 24V ±0.25V
• Available output currents: 2A, 3A, 5A, 6A, 10A, 15A, 25A
• Corresponding output power: 48W, 72W, 120W, 144W, 240W, 360W, 600W
• Sizes (by variant): 66×58×23 mm; 74×74×32 mm; 100×80×38 mm; 100×80×45 mm; 150×110×49 mm
• Weights (by variant): 0.15 kg; 0.25 kg; 0.5 kg; 0.6 kg; 1.2 kg
• Transfer efficiency: table 90% (typ.) — feature list up to 96%
• Overheat protection threshold: 150°C
• Operating temperature: -20°C to 85°C
• Protection class: IP67
• Certifications: CE, FCC, RoHS

Variants & dimensions

• 2A: 66×58×23 mm — 0.15 kg — 48W
• 3A–6A: 74×74×32 mm — 0.25 kg — 72W–144W
• 10A: 100×80×38 mm (alternative package 100×80×45 mm) — 0.5 kg / 0.6 kg — 240W
• 15A: 100×80×38 mm — 0.5 kg — 360W
• 25A: 150×110×49 mm — 1.2 kg — 600W

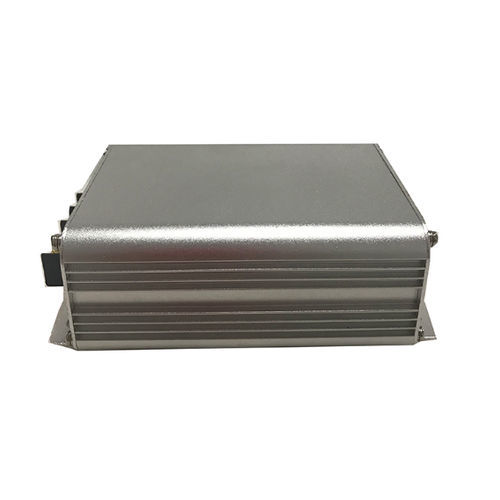

• Product images available per variant (illustrative)

Installation & safety

• Follow polarity labels during installation: do not reverse positive and negative.
• Do not connect input and output in reverse (risk of damage).
• Ensure load power does not exceed the converter's maximum rating.
