The superheated water boilers made by Bono Energia are designed for thermal capacities ranging from 5 to 60MWt, with hot water outlet temperatures up to 260°C and pressures up to 65bar.
CTH boilers offer a reliable solution for applications such as district heating or industrial processes where hot water (under 120°) is used. For this applications an accurate temperature control and a fast thermal response are needed.
Thanks to their multi-tubular and very compact structure, CTH allow an easy installation and an overall thermal efficiency higher than 94%. The wide furnace, water tube screened, helps the thermal exchange and allows to match the most stringent NOx emissions levels. The external walls of the heaters never reach more than 20-30°C above the ambient temperature.
Up to 30MWt, thanks to their innovative design, CTH heaters are delivered in a package solution. Over 30MWt a field erection of the heater is required.
The pressure parts will be delivered in only two sections reducing the local assembly costs.
CTH heaters offer complete accessibility for cleaning and maintenance through proper inspection doors, which allow to fully inspect their interior.
|
|

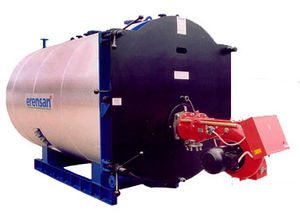

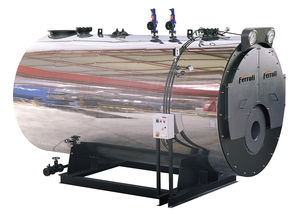

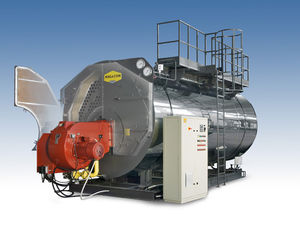

Type UT-M as flame-tube smoke-tube boiler
with 3-pass technology acc. to the Pressure
Equipment Directive up to an output of
750-19,200 kW for hot water generation.
Type UT-H as single flame-tube smoke-tube
boiler with 3-pass technology up to an output
of 820-18,300 kW for hot water generation.
Type UT-HZ as double flame-tube smoke-tube
boiler with 3-pass technology up to an output
of 13.000-38,000 kW for hot water generation.
|
|
Combination of high technology and superior workmanship.
Long life, compact design, high capacity to size ratio
Suitable for use of Natural Gas, LPG, Light Oil and Heavy Oil as fuel
Special design to minimize the effects of sediments and scaling on waterside
Well-distributed expansion pattern due to balanced heat absorption within the boiler
Also transportable in modular configuration for site assembly, for boiler rooms with narrow passages.
|
|

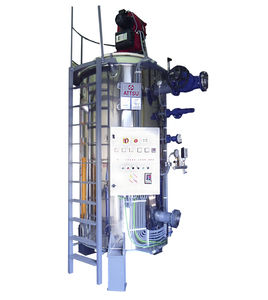

Controlled circulation, water tube boilers suitable for the production of hot water, and three gas passes.
They are realized both in vertical and horizontal version. They have elevated efficiencies (>91%) and are tested for pressures up to 36 bar and, for there dimensions, can be installed in reduced spaces.
They produce hot water in only five minutes and have minimum heat dispersions towards the atmosphere which guarantees a higher global efficiency in comparison with a traditional fire tube boiler NPR. Capacity from 116 to 10.000 kW.
|
|
The PHW range of hot water boilers has been introduced by Byworth for commercial and light industrial hot water applications.
With outputs ranging from 120 to 1200 kW and working pressure up to 5 bar g, the PHW gives high efficiency at a very competitive price.
|
|

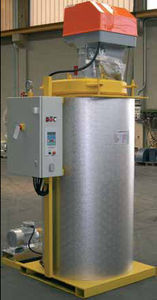

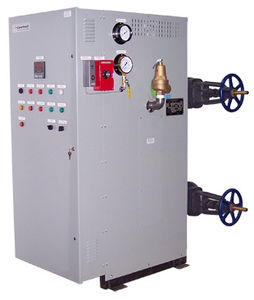

Electric heaters
HTT delivers electric heaters type wte and temperature control units type cps for thermal oil and hot water.
Capacity range from 3 up to 3.000 kW.
Temperatures up to +450° C/+842° F.
Also available in explosion-protected design.
|
|
Suitable for heating buildings, hotels, hospitals, plants and other facilities.
Has small dimensions and requires small installation area.Provides stable operating conditions in a very short time after the start up.Has high efficiency.Enviromentally friendly.Has pressurized combustion chamber and 3 pass design. If requested, automatic control unit and elements can be installed.
|
|

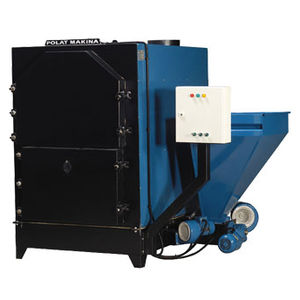

Model GTF
SMOKE TUBE THREE-PASS BOILER.
HOT WATER OR SUPERHEATED WATER VERSION, MAX 5 bar
General Features
Big combustion chamber
Pre-arrangement to integrate an underfed automatic grate for wood chips and shavings
Tube bundle and combustion chamber inspection doors
Man-hole upper access door in the water zone
Flanged joints
|
|
|
|
|
|
Model UNIBIN
The arrangement of the generator with respect to its position has been given the greatest importance in the design logic:
the left or right combustion chamber and the three different installation levels allow the designer to give attention to the particulars of the manual loading zone, even if today it is prohibited by the Italian norns.
The same inspection gate can be located on the side or on the front of the boiler as is necessary; with the smoke, leaving the generator, has three different solutions:
an underground passage, direct to the ventilator or else a vertical part of the generator and, or request, this can also act as a pre heater for the air thanks to the air space for the cooling of the smoke.
automatic grid with an Archimedes' screw can be combined with the same boiler, for chips or wet sawdust:
cleary, in this case , not only the internal oven must be modified, but also the ash discharge, which can be changed from manual to automatic with a transversal screw conveyor.
The cleaning of the generator is of great importance, not only to guarantee thermal exchange and thus efficiency , but also to keep the maintenance cost to a minimum.
The bundle of convection tubes is subvertical: special fireproofed septa delimit any smoke detours, decreasing easy drags in horizontal route boilers.
|
|
Model UNIBIN S
SUPERHEATED WATER GENERATOR MAX 5 bar,
COMPLETELY WATER FILLED, WITH SEPARATE EXPANSION VESSEL
DESIGN CONCEPT AS FOR "UNIBIN" SERIES
|
|
|
|
|
|

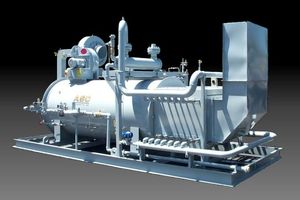

CT water tube type steam generators are the result of over 40 years experience of BONO ENERGIA in the industrial, petrochemical and power generation applications.
Engineered using the most advanced CAD systems, these generators guarantee the highest operating features, thanks to BONO's experience in heat transfer, welding technology and pressure vessel calculations. The production, carried out in Peschiera Borromeo facilities, is based on ISO 9001-2000 quality standards, with inspection plans for material, production process and final test.
CT series water tube steam generators represent a modern concept of "D" shaped desing, having two overmounted drums, expanded vertical tubes and full water walls type furnace. The water circulation inside the boiler is of the natural type.
The burner is housed inside the front water wall by means of properly shaped water tubes.
CONVENTIONAL FIRED WATER TUBES BOILERS (1,000 units world-wide installed)
Model
Clajtub CTD-S / Clajtub CTD
Configuration
Package / Site erected
Medium
Saturated and Superheated steam
Steam production
8 to 150 t/h
Design pressure
up to 80 bar
Steam temperature
300°C - 480°C
Thermal efficiency
up to 94%
Type of fuel
Natural Gas, Fuel Oil, Refinery gas, Lean gas, Reach gas, Coke Oven Gas, Process gas
|
|
Model COMPACT
This series is composed of 2 different models: The first is a low-grade fuel generator for the energy reconversion of processing scrap which can be installed in two different ways:
using the traditional method with fore-oven set into the ground with manual loading and fuel insuflation systems and the possibility of pilot or primari burner. This solution is suitable for primary processing industies in Afdrican or Asian countries.
The second method involves the positioning of the generator over a base which acts as a container for the internal oven, where the automatic grille of the fuel loading and ash removal systems is housed.
|
|
Feed Water Deaeratores
Packaged Deaerator systems, 5,000 to 200,000 PPH. Conditions feedwater to 0% CO2 and .005cc/liter of oxygen.
imageThe HURST "OXY-MISER" deaerating boiler feedwater system eliminates the need of expensive oxygen scavenger chemicals and also offers the following advantages:
* Removes carbon dioxide as well as oxygen.
* Raises the boiler feedwater temperature, eliminating thermal shock in boilers.
* Improves overall boiler room efficiency.
* Feedwater pumps are sized for each individual application - assuring total compatibility and optimum operation.
* Vessels are ASME Code constructed for 50 psig.
* Compact design means smaller boiler room requirements.
|
|
|
|
|
|
Dissolved gases such as oxygen and carbon dioxide must be reduced in Boiler Feed Water in order to prevent boilers and steam circuits from corrosion. The thermo-physical deaeration process is by far the most applied technology when a reduction of oxygen to only a few parts per billion is required. While part of the BONO Group, ARTES Ingegneria is in the business of Deaerators since 1958.

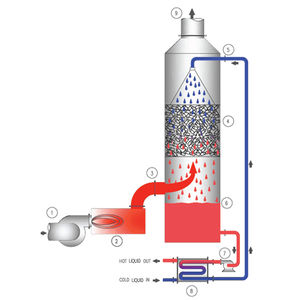

The degassing process is achieved in the deaerating tower where make-up water is atomised on a set of special packing that increases the contact surface between water and steam. Oxygen and carbon dioxide are stripped by the steam flow and vented through a calibrated orifice. Deaerated water is collected in the storage tank so as to assure an adequate “Hold-up” time for the boiler downstream.
According to the design capacity and steam flow, the deaerating tower may be arranged on a vertical or horizontal geometry so that, in the latter case, a larger surface of mass and heat transfer is implemented.
Deaerators are manufactured and marketed on BONO Artes’ own proprietary design in order to assure the complete responsibility of the concerned unit.
|
|
The WBL/WDB400 Boiler Controllers and WCM/WDC400 Condensate Monitors represent the latest in technological and innovative advancements from Walchem. All of the standard features you'd expect in conventional boiler controllers/condensate monitors are included, plus optional simple-to-use information management tools that enable water treatment professionals to deliver more effective service to their customers..
The WBL/WDB/WCM/WDC400 Controllers have the ability to store conductivity and temperature values, water usage, relay status, and user settings. A USB memory stick is all that's needed to extract the information. Download logs from the USB stick to a PC at your convenience, or copy your preferred treatment program settings to another controller to speed start-up. It couldn't be easier!
|
|
| ... products without technical information |
| |
Feed Water Deaeratores
Packaged Deaerator systems, 5,000 to 200,000 PPH. Conditions feedwater to 0% CO2 and .005cc/liter of oxygen.
imageThe HURST "OXY-MISER" deaerating boiler feedwater system eliminates the need of expensive oxygen scavenger chemicals and also offers the following advantages:
* Removes carbon dioxide as well as oxygen.
* Raises the boiler feedwater temperature, eliminating thermal shock in boilers.
* Improves overall boiler room efficiency.
* Feedwater pumps are sized for each individual application - assuring total compatibility and optimum operation.
* Vessels are ASME Code constructed for 50 psig.
* Compact design means smaller boiler room requirements.
|
|
|
|
|
|
Dissolved gases such as oxygen and carbon dioxide must be reduced in Boiler Feed Water in order to prevent boilers and steam circuits from corrosion. The thermo-physical deaeration process is by far the most applied technology when a reduction of oxygen to only a few parts per billion is required. While part of the BONO Group, ARTES Ingegneria is in the business of Deaerators since 1958.
The degassing process is achieved in the deaerating tower where make-up water is atomised on a set of special packing that increases the contact surface between water and steam. Oxygen and carbon dioxide are stripped by the steam flow and vented through a calibrated orifice. Deaerated water is collected in the storage tank so as to assure an adequate “Hold-up” time for the boiler downstream.
According to the design capacity and steam flow, the deaerating tower may be arranged on a vertical or horizontal geometry so that, in the latter case, a larger surface of mass and heat transfer is implemented.
Deaerators are manufactured and marketed on BONO Artes’ own proprietary design in order to assure the complete responsibility of the concerned unit.
|
|
