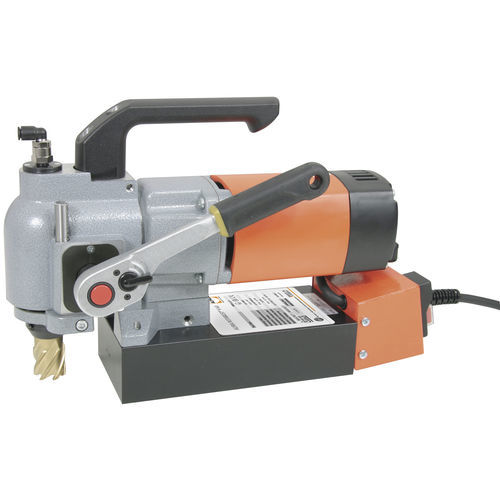

Magnetic drill Rotabest® V 40
electriccompact

magnetic drill
magnetic drill
magnetic drill
Add to favorites
Compare this product


Characteristics

Type
magnetic
Power source
electric
Other characteristics
compact
Rotational speed

450 rpm
(2,827.4 rad.min-1)

Power

900 W

Voltage

110 V, 230 V

Drilling diameter

Min.: 12 mm
(0.47 in)

Max.: 40 mm
(1.57 in)

Description

As part of our S-series for special devices, the V32 is showing full commitment when metal core drilling becomes tight. The compact device is delivering maximum power even in working areas, which are difficult to reach. An electromagnet is ensuring a secure hold. The basis is a flat design, which was developed for extraordinary application situations: For example, for drilling around vehicle frames, in narrow T-beams or whenever drilling machines with standard dimensions meet their limits. Part of the concept for a space-saving application is, among other things, the small stroke of only 45 mm, as well as the operation of the device with a ratchet. The V32 is mastering almost any challenge in metal core drilling – for example in combination with core drills with a diameter of up to 32 mm or with step drills with a diameter of up to 32 mm.

Catalogs

No catalogs are available for this product.

See all of ALFRA GmbH‘s catalogs
