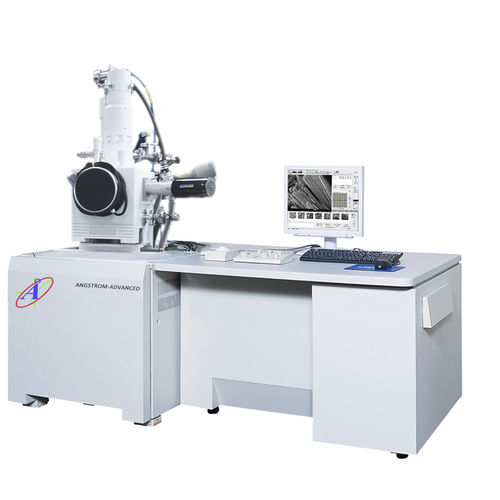

analysis microscope / electron / scanning electron / compact
AA8000 Angstrom Advanced



  • Technical applications:

    for analysis

  • Type:

    electron, scanning electron

  • Ergonomics:


  • Other characteristics:

    automated, multipurpose

  • Resolution:

    3 nm

  • Magnification:

    1,000,000 unit


Angstrom Advanced AA8000 is a true multi-purpose, multi-user Scanning Electron Microscope(SEM). It excels in versatility and flexibility by combining high performance in all SEM modes & Particle counter with ease of operation in a multi-user material research environment. The AA8000 Scanning Electron Microscope features a perfect balance between stable configuration and an excellent resolution. The AA8000 Scanning Electron Microscope has state-of-art SEM technology. Its rock-solid reliability and fully automated control functions provide customer with the maximum analytical capability. Angstrom AA8000 SEM pursues compact SEM design which is great for office environment. Angstrom AA8000 SEM provides high scan speed and pixel resolution and high performance control driver with new PCI board. A full set of automated image adjustment functions make it easy for new users to quickly acquire crisp, noise-free images. Even experienced users will benefit from the automated contrast, brightness and focus.
High Performance

Field proven image quality
Upgraded scan speed and pixel resolution.
Wide variety of optional instrument
Resolution : 3.0 nm
Magnification : ~1,000,000X
Display : Photo 4096X 4096
Search : 640X480 30fps
Options : BSE / WDS / EDS / EBSD / Etc.
Gun Coumn

Gun design for stable current supply
Dual field objective lens for spherical
Aberration reduction
Movable aperture for beam centering
Upgraded design of magnetic lens (CL/OL)
Chamber & Stage

5 axis eucentric stage
Option: Stage motorization
EDS,WDS,CCD, Manipulator etc
