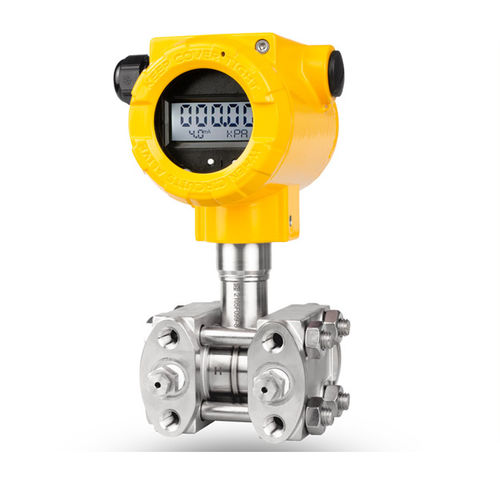

SMART DIFFERENTIAL PRESSURE TRANSMITTER APR-2000 ALW
-4…20 mA output signal + HART 5 / HART 7 protocol
(special version: 0…20 mA or 0…5 mA output signal + HART 5 protocol)
-Display with backlight
-Safety version SIL2/SIL3
-Intrinsic safety certificate ATEX, IECEx, FM (USA, Canada)
-Explosion proof certificate ATEX, IECEx, FM (USA, Canada)
-Programmable zero range, shift, characteristic and damping ratio with
local panel keys
-Static pressure limit up to 700bar
-Accuracy 0,075% (0,05%, 0,04% on request)
-Marine certificate – DNV, BV
-Gold plated diaphragms
-Wetted parts material 316L/Hastelloy C276
