Flow control valve

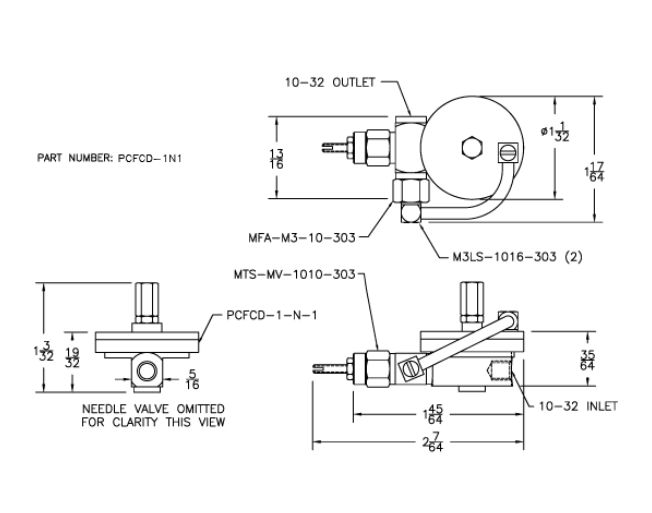

0 - 4.2 gph | PCFCD-1N1
Beswick Engineering Co, Inc.
Max Inlet Pressure Rating: The PCFCD is rated for a maximum inlet pressure of 500 psi.
Pressure Differential Setting: Factory preset to maintain a 10 psi differential across the adjustable orifice.
Effective Orifice: 0” to 0.032” with standard needle.
Flow Control Range:
Especially well suited for control of low flow rates.
0 to 4.2 gallons per hour (0 to 19 liters per hour) of water
0-20 ft3/hr (0-0.56 cubic meters per hour) of air
High flow and high resolution needles available. Consult factory for details.
Approximate Weight: 45g in brass.
Porting: 10-32 internal threaded inlet and outlet ports.
