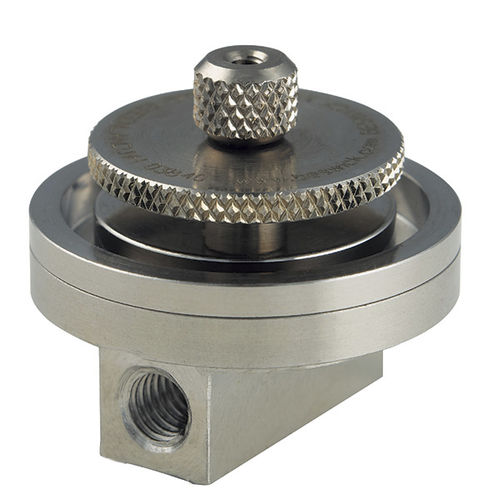

gas pressure regulator / for air / single-stage / diaphragm
PRDB-.N

{{requestButtons}}

Characteristics

  • Product:

    for gas, for air

  • Number of stages:

    single-stage

  • Technology:

    diaphragm

  • Material:

    brass, stainless steel

  • Applications:

    precision, low-pressure

  • Other characteristics:

    miniature

  • Pressure:

    Max.: 34.7 bar (503.28 psi)

    Min.: 0 bar (0 psi)

  • Orifice diameter:

    0.89 mm

Description

PRDB-N series single stage diaphragm regulator is integrated with a patented valve setup. This is an effective solution for optimal sealing applications within reduced outlet pressure, pressure differential and flow rate. It also provide maximum functionality at stable inlet pressure with pressure rate ceiling of 500 psig. Its outlet force is defined with 0 to 30 psig. This assembly allows operations with 1/2 psi due to its configuration with a specialized valve unit which offers friction-less and constant routine execution.

It approximates 25 g body mass, with brass and stainless steel composition. This diaphragm regulator utilizes 10 to 32 internal threading within the inlet and outlet ports.
