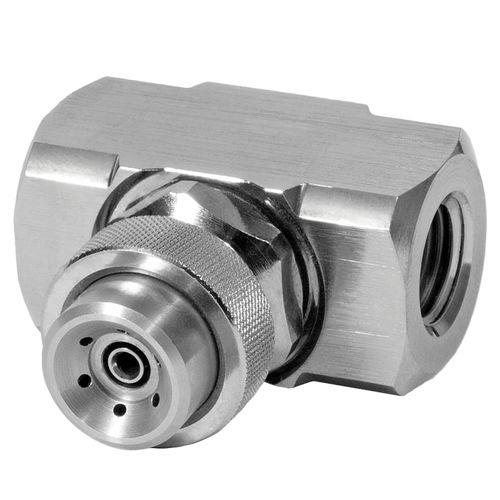

Spray atomizing nozzle XAER series
for liquidsfull-conenickel-plated brass

spray atomizing nozzle
spray atomizing nozzle
spray atomizing nozzle
Add to favorites
Compare this product


Characteristics

Function
spray
Fluid
for liquids
Stream
full-cone
Material
nickel-plated brass
Applications
for the steel industry, fire protection, for the chemical industry, for the food industry, refueling, for petrochemical applications, for the mining industry, for water treatment
Spray angle
20°
Other characteristics
pneumatic, internal mixing, external mixing, NPT, BSP, female
Flow

Max.: 61 us gal/h
(230.91 l/h)

Min.: 0.7 us gal/h
(2.65 l/h)

Pressure

Max.: 40 psi

Min.: 3 psi

Description

External Mix, Pressure-Fed Pneumatic Spray Nozzles External mix: allows spraying of viscous materials Able to spray high viscosity (100+ cP) fluids which require a round spray pattern Liquid flow rate is controlled only by the liquid pressure. Liquid flow rate is not dependent on the air pressure making the nozzle performance easier to control. Variable atomization Precise metering of the liquid flow rate HOW SPRAY PATTERN IS ACHIEVED In a pressure-fed system, the liquid is supplied under pressure to either internal or external mix BETE XA Series nozzles. Air and liquid regulators control the fluid delivery pressure, while the air filter and liquid strainer ensure that the supplied fluids are high quality. Operational control is maintained by manual or solenoid valves used in conjunction with the various hardware assemblies The air and liquid streams exit the nozzle independently through each orifice, creating a narrow-angle full cone spray pattern Air and liquid flow rates can be controlled independently, allowing precise liquid metering
