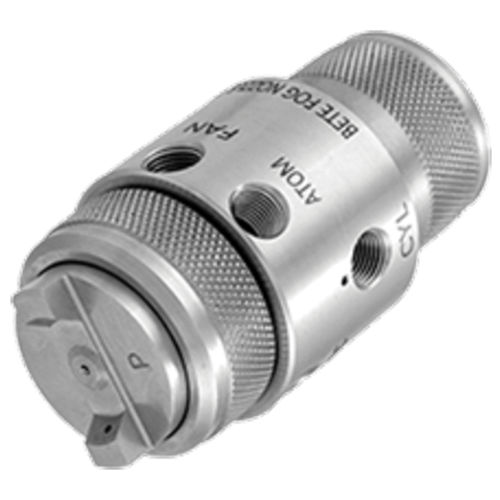

Spray atomizing nozzle SAM series

airfull-conestainless steel

External Mix Flat Fan or Full Cone Pneumatic Spray Nozzles DESIGN FEATURES Precise atomized intermittent spraying and metering of the liquid flow rate Suitable for all liquids, including viscous media above 200 cP Separate atomizing and fan air lines provide variable coverage and fine control of drop size without affecting liquid flow rates. Higher atomizing air pressure yields finer drop size; higher fan air pressure yields broader patterns. Pneumatically controlled shut-off and built-in clean-out Liquid flow rates are independent of air HOW SPRAY PATTERN IS ACHIEVED Air atomizing nozzles atomize fluids by combining liquid and compressed air/gas at low pressures to form a very fine spray. They can form either a fan or cone spray pattern, depending on the design of the nozzle The air and liquid streams exit the nozzle independently through each orifice Air and liquid flow rates can be controlled independently, allowing precise metering of the liquid
