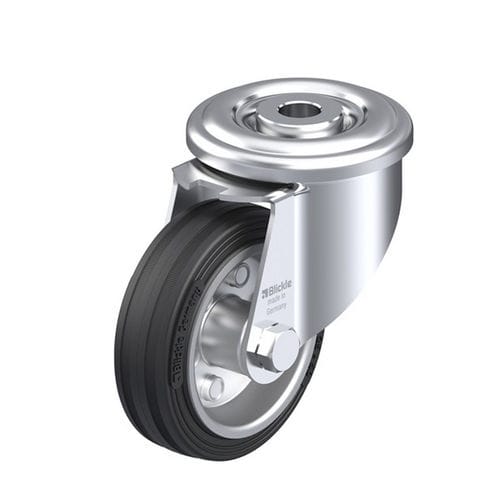

Swivel caster LER-VE seriesrodcentral hole fixinglow-noise
Add to favorites
Compare this product
Characteristics
- Type
- swivel
- Mount
- rod
- Other characteristics
- central hole fixing, low-noise, steel, rubber, pressed steel, thermoplastic rubber
- Load capacity
Max.: 205 kg
(452 lb)Min.: 50 kg
(110 lb)- Wheel diameter
Max.: 200 mm
(7.874 in)Min.: 80 mm
(3.15 in)- Tread width
Max.: 50 mm
(1.97 in)Min.: 25 mm
(0.98 in)
Description
The rim sections used in the VE wheel series are pressed together with the standard solid rubber tyre and the roller bearing. The wheel series provides an excellent level of operational comfort and is resistant to many aggressive substances. With a hardness of 80 Shore A, the tread is especially gentle on the floor and quiet.
The wheels of the VE series are used in manually operated transport units and food carts, as support wheels on trailers and in a wide range of small units like compressors or welding equipment.
In addition to the plate fitting, the VE series is also available with a bolt hole fitting.
LER series: Pressed steel swivel bracket with bolt hole
