mass flow meter / Coriolis / for liquids / compact

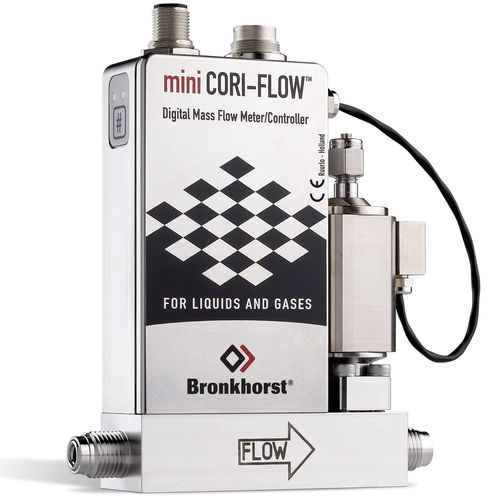

mini CORI-FLOW Series Bronkhorst

{{requestButtons}}

Characteristics

  • Technology:

    mass, Coriolis

  • Fluid:

    for liquids

  • Other characteristics:

    compact, miniature, in-line, ATEX, IP65

  • Process pressure:

    5 bar, 100 bar, 200 bar (72.52 psi)

  • Volumetric flow rate:

    Max.: 3,900 l/min (1,030.3 us gal/min)

    Min.: 0 l/min (0 us gal/min)

Description

With the development of the mini CORI-FLOW™ series Bronkhorst achieved a technological breakthrough in Coriolis mass flow measurements and control, by realising a compact, cost-effective Coriolis Mass Flow Meter/Controller for accurate measurement and control of (very) low flow rates. The unique design of the miniature Coriolis sensor features unsurpassed performance, even with changing operating conditions in pressure, temperature, density, conductivity and viscosity.

Contrary to many other Coriolis flow meters on the market, mini CORI-FLOW™ offers integrated PID control and close-coupled control valves or pumps, thus constituting very compact, cost- and space-saving, precise Coriolis Mass Flow Controllers.

Lowest range 0,1…5 g/h
Highest range 3…300 kg/h
Improved dosing applications using Coriolis instruments with CORI-FILL™ technology
CORI-FILL™ technology features an integrated batch counter function together with the facility to directly control shut-off valves, proportional valves or (gear) pumps. Due to this technology, Bronkhorst can offer compact assemblies of (mini) CORI-FLOW™ instruments combined with a valve or pump, capable of dosing the exact desired amount of fluid.

Digital technology
mini CORI-FLOW™ features state-of-the-art digital technology, offering fieldbus interface options and additional functions such as totalisation and alarms. The instruments can be tuned according to customer requirements using the RS232/fieldbus interface and a number of free to use software tools.
