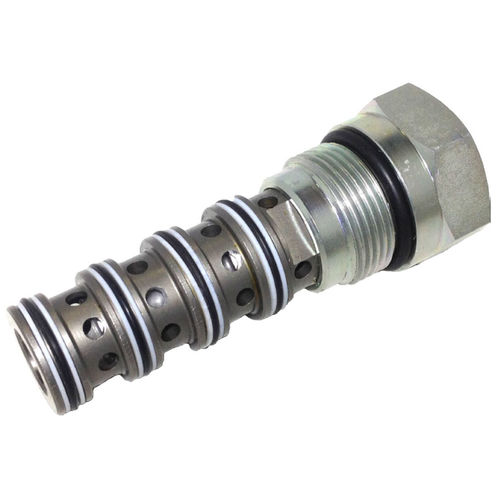

Spool hydraulic directional control valve DV15-P5-24-08

hydraulically-operatedpilot3/2

The DV15-P5-24-08 is a 5-ported piloted directional control valve, 2-position, 4-way, 15-size. It is shifted by applying pilot pressure to port 5. When the DV15-P5-24-08 is in the normal position, port 3 is blocked while flow is allowed between ports 2, 4 and 1. During transition, flow is allowed between all four ports. When the spool is fully shifted, flow is allowed from ports 3 to 2, and ports 4 to 1. Applications Use this valve for applications including motor free wheel operation. The valve can be piloted with many 2-way valves including solenoid, sequence, relief or manual valves with the internal pilot drain orifice option. Alternatively, it can also be piloted with a 2-position, 3-way solenoid valve using the internal pilot drain plug option.
