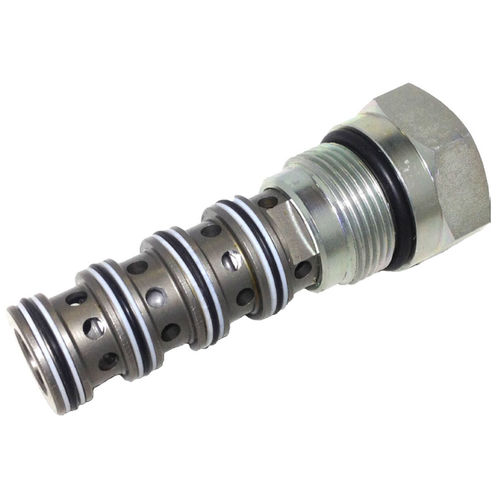

Spool hydraulic directional control valve DV15-P5-24-05

hydraulically-operatedpilot4/2-way

The DV15-P5-24-05 is a normally-open, 5-ported piloted directional control valve, 2-position, 4-way, 15-size. It is shifted by applying a pilot pressure to port 5. In the normal position, flow is allowed between ports 3 and 2, and ports 4 to 1. During transition, the flow patterns remain the same. When the spool is fully shifted, all four ports are closed. Applications Use this valve for applications including on-off control of uni-directional motors. The valve can be piloted with many 2-way valves including solenoid, sequence, relief or manual valves with the internal pilot drain orifice option. Alternatively, it can also be piloted with a 2-position, 3-way solenoid valve using the internal pilot drain plug option.
