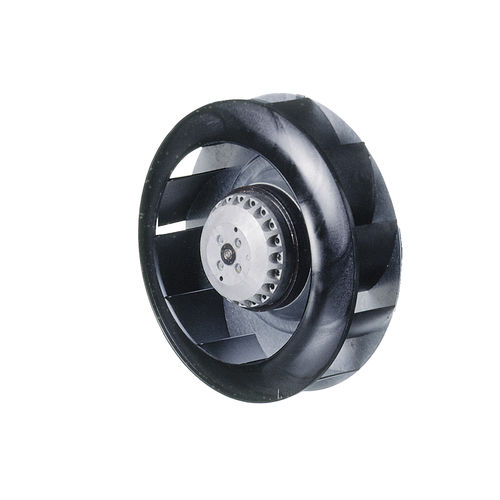

Ceiling-mounted fan RRE seriesradialcoolingextraction
Add to favorites
Compare this product
Characteristics
- Installation
- ceiling-mounted
- Configuration
- radial
- Function
- cooling, extraction
- Supply voltage
- 24 Vdc, 48VDC, 230VAC, 115VAC
- Drive mechanism
- electrically-powered
- Other characteristics
- high-pressure, low-noise, IP44, with external rotor, backward curved, motor
- Air flow
Max.: 1,770 m³/h
(62,506.96 ft³/h)Min.: 315 m³/h
(11,124.12 ft³/h)- Diameter
Max.: 315 mm
(12.402 in)Min.: 135 mm
(5.315 in)- Rotational speed
Max.: 3,125 rpm
(19,635 rad.min-1)Min.: 1,335 rpm
(8,388 rad.min-1)- Noise level
55 dB, 57 dB
Description
High-pressure and low airflow, as a result of their speed.
Unique features of the backwards-curved blade fans in the Fandis catalogue, vibration-free and thermal protection integrated in the motor.
• With dynamic balancing on two planes, the Fandis double inlet fans can ensure stable operation.
• Voltage control can be used to modulate the rotation speed and the noise level of the double inlet fans.
• The double inlet fan motors are equipped with integrated thermal protection to protect them from damage and malfunction.
• The condenser for double inlet fans is a separately available component (not for three-phase version).
