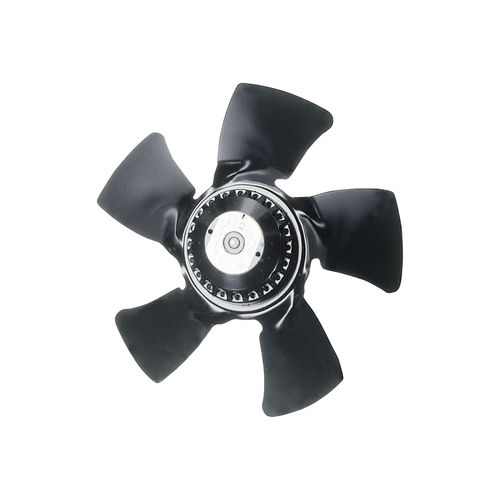

Axial fan VRE Seriescoolingextraction230VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- axial
- Function
- cooling, extraction
- Supply voltage
- 230VAC, 400VAC
- Drive mechanism
- electrically-powered
- Other characteristics
- with external rotor
- Air flow
Max.: 2,750 m³/h
(97,115.333 ft³/h)Min.: 310 m³/h
(10,947.547 ft³/h)- Diameter
Max.: 353 mm
(13.898 in)Min.: 170 mm
(6.693 in)- Rotational speed
Max.: 3,085 rpm
(19,384 rad.min-1)Min.: 1,195 rpm
(7,508 rad.min-1)- Noise level
57 dB, 59 dB, 61 dB
Description
Axial fans are best-suited to remove heat in critical operations thanks to the insulation ranging from class F up to class H applied to their electrical windings. The metal rotor is very robust and the motor, which is mounted on ball bearings for maximum reliability, is equipped with a thermal protection against overloads. Axial fans can be paired to voltage-control systems to regulate the speed of rotation and noise production. They are vibration-free, with low noise levels and a compact and robust construction. The electric motors of Fandis axial fans are thermally protected and have IP44 rating (or IP54 rating on demand).
