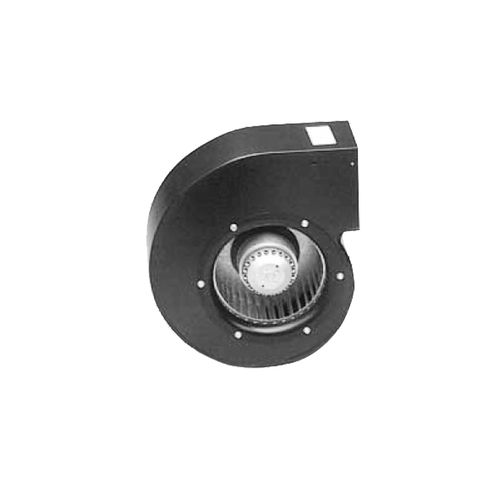

Centrifugal fan GRE/TRE Seriescoolingextraction230VAC
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- cooling, extraction
- Supply voltage
- 230VAC
- Drive mechanism
- electrically-powered
- Other characteristics
- compact, with forward-curved blades, with external rotor
- Air flow
Min.: 185 m³/h
(6,533.213 ft³/h)Max.: 765 m³/h
(27,015.72 ft³/h)- Rotational speed
Min.: 950 rpm
(5,969 rad.min-1)Max.: 2,015 rpm
(12,661 rad.min-1)- Noise level
51 dB, 56 dB, 57 dB
Description
Single inlet centrifugal fans with forward-curved impeller blades and thermal motor protection are directly coupled to the external rotor motor. Thanks to their compact and robust design, they are used whenever a large volume of air has to be moved into a confined space. They are equipped with dynamic balancing on two planes which enables stable and vibration-free operation. Voltage control can be used to modulate the rotation speed and the noise level of the double inlet fans. The single inlet centrifugal fans are also available in the TRE impeller version with a motor.
