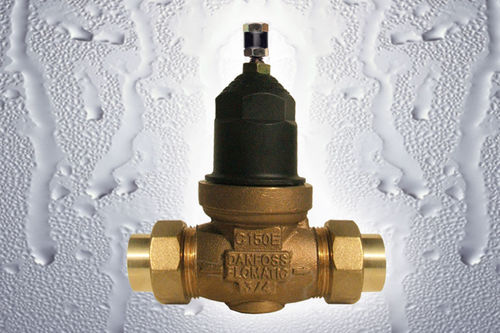

Diaphragm valve CYCLE GARD® I C152E seriespressure-controlfor waterfor pumps
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Function
- pressure-control
- Media
- for water
- Applications
- for pumps
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 400 psi
Min.: 0 psi
- Temperature
Max.: 80 °C
(176 °F)Min.: 0 °C
(32 °F)
Description
DIRECT ACTING PUMP CONTROL VALVE- Reduces rapid pump cycling and maintains a pre-set operating pressure for wells. Threaded female x female connection. Features a low lead alloy body & composite bell housing, Nylon reinforced Buna-N diaphragm and stainless steel screen. Supplied with one FNPT tailpiece and union nuts.
Temp Max: 180°F (80C)
Pressure Max: 400 PSI Factory set at 50 PSI
