Diaphragm valve HYDROSTAT® MODEL C3100Epressure-controlfor waterfor pumps
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Function
- pressure-control
- Media
- for water
- Applications
- for pumps
- Other characteristics
- compact
- DN
25 mm
(0.984 in)- Pressure
Max.: 400 psi
Min.: 0 psi
- Flow rate
Max.: 25 us gal/min
(94.64 l/min)Min.: 0 us gal/min
(0 l/min)
Description

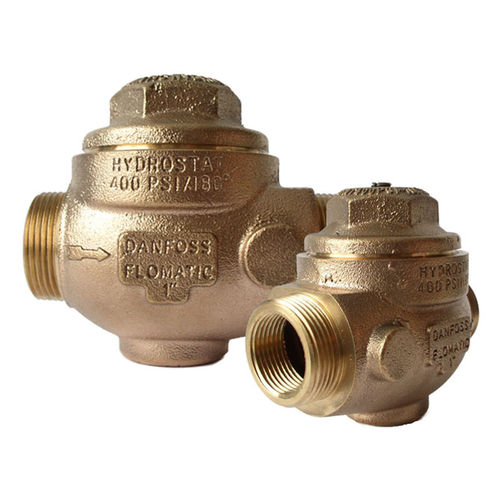

COMPACT PUMP PRESSURE VALVE- Reduces rapid pump cycling and maintains a pre-set operating pressure for wells. Threaded female I.D.x male O.D. on inlet and outlet connections. Features a low lead alloy body & cover, Nylon reinforced Buna-N diaphragm. 1 NTP Female connection x 11/4" male NPT.
Temp Max: 180°F (80C)
Max Flow 25 GPM
Pressure Max: 400 PSI
Factory Set at 60 PSI Outlet (100 psi Inlet)
