square drive torque sensor / static / with flange / OEM
TDF600 series
FUTEK Advanced Sensor Technology, Inc.
Characteristics
-
Type:
static
-
Configuration:
square drive, with flange
-
Other characteristics:
OEM, strain gauge
-
Torque:
150 Nm, 300 Nm, 700 Nm (110.63 ft.lb)
Description
Product Description

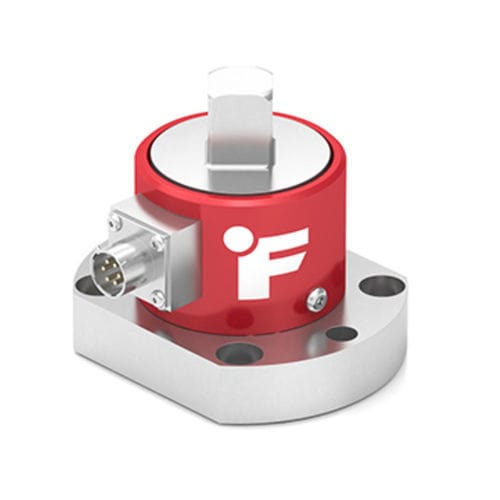

FUTEK’s TDF600 Reaction Torque Sensor - Flange-to-Square Drive offers a unique solution for auditing and calibrating mechanical torque wrenches. Additionally, the TDF600 is used in production and automated assembly applications. The TDF600 is available in 17-4 PH stainless-steel with a red anodized aluminum cover.
The standard TDF600 Reaction Torque Sensor - Flange-to-Square Drive can be modified or customized to meet your requirements. The TDF600 is manufactured in the USA and uses metal foil strain gauge technology.
Product Highlights:
Easily integrates into OEM applications
Designed for Torque auditing
17-4 PH stainless-steel construction
Strain gauge based
