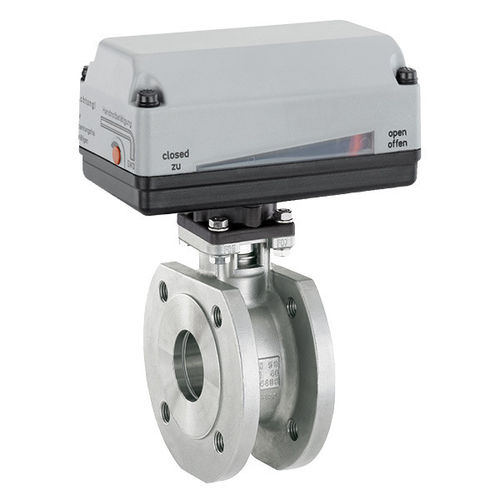

Ball valve 768electriccontrolfor chemical products
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- electric
- Function
- control
- Media
- for chemical products, for gas
- Body
- seat, compact, PTFE, metal, plastic, IP65
- Applications
- for vacuum
- Number of channels
- 2/2-way
- Other characteristics
- ANSI, standard, full-flow, motor-driven
- DN
Max.: 100 mm
(3.937 in)Min.: 15 mm
(0.591 in)- Pressure
Max.: 40 bar
(580.2 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -20 °C
(-4 °F)
Description
The GEMÜ 768 2/2-way metal ball valve is motorized. It has a plastic actuator housing. A manual override and an optical position indicator are integrated as standard. The seat seal is made of PTFE.
-High flow rates
-Full-flow bore
-Suitable for vacuum applications
-Available with Open/Close control or control module
-Antistatic device
-Connection types:Flange
-Connection standards:ANSI | EN
-Body materials:1.4408, investment casting material
-Seal materials:PTFE
-Protection class:IP 65
-Operating time 90°:11 to 20 s
-Supply voltages:12 - 250 V AC/DC
VIDEO
