Ball valve S717manualregulatingfor gas
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual
- Function
- regulating
- Media
- for gas
- Body
- flange, threaded, PTFE, EPDM
- Number of channels
- 2/2-way
- Other characteristics
- DIN
- DN
Max.: 100 mm
(3.937 in)Min.: 10 mm
(0.394 in)- Pressure
Max.: 16 bar
(232.1 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)
Description

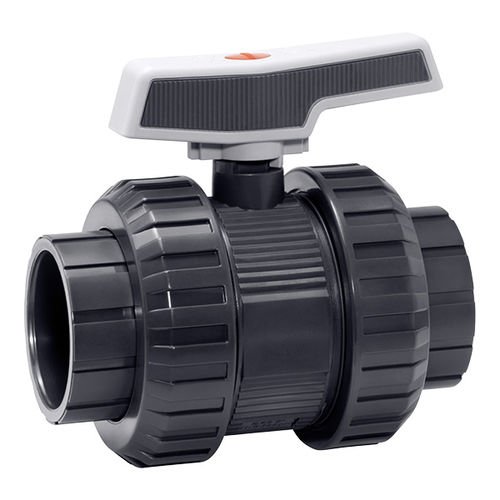

GEMÜ S717 is a 2/2-way plastic ball valve available in sizes DN 10 to 100. It is equipped with a plastic manual actuator. The seat seal is made from PTFE and the O-ring seals can be made from either EPDM or FKM.
The product is designed for use in piping. It controls a flowing medium by manual operation.
Simple installation
Durable
Grip can be used as a regulating key
Body configurations: 2/2-way body
Connection types: Flange | Solvent cement socket | Spigot | Threaded connection | Union end
Connection standards: ASTM | BS | DIN | NPT
Body materials: PP-H, grey | PVC-U, grey
Seal materials : EPDM | FKM
Conformities:
