Safety relief valve
N9B_N9LB
Golden Mountain Enterprise

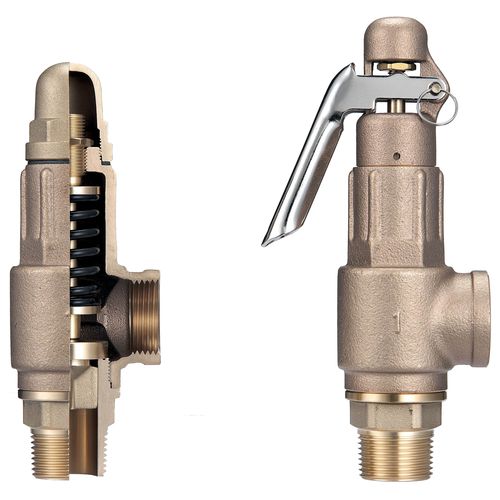

BRONZE SAFETY RELIEF VALVES
Low Lift Safety Valves
Material:Body- Cast bronze; Valve seat- Brass, PTFE soft seat available
Orifice Size:½"(15mm), ¾"(20mm), 1"(25mm), 1¼"(32mm), 1½"(40mm), 2"(50mm)
Working Pressure:2~10 kgf/cm2(28~150 psig), 11~20 kgf/cm2(156~285 psig)
Working Temp.:-45ºC~+185ºC
Working Fluid:please refer to the table of General Material List as catalogue
Low Lift Safety Valves
Material:Body- Cast bronze; Valve seat- Brass, PTFE soft seat available
Orifice Size:½"(15mm), ¾"(20mm), 1"(25mm), 1¼"(32mm), 1½"(40mm), 2"(50mm)
Working Pressure:2~10 kgf/cm2(28~150 psig), 11~20 kgf/cm2(156~285 psig)
Working Temp.:-45ºC~+185ºC
Working Fluid:please refer to the table of General Material List as catalogue
