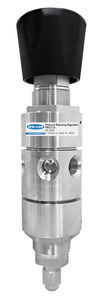

Gas pressure regulator and reducer PRU300 diaphragmstainless steelPTFE
Add to favorites
Compare this product
Characteristics
- Product
- for gas
- Technology
- diaphragm
- Material
- stainless steel, PTFE
- Applications
- industrial
- Pressure
Min.: 10,000 Pa
(1.45 psi)Max.: 700,000 Pa
(101.53 psi)- Orifice diameter
0.25 in
- Temperature
Min.: -5 °C
(23 °F)Max.: 60 °C
(140 °F)
Description
Technical Data
For using gases and liquids
Inlet pressure: 1.5Mpa maximum
Adjustable outlet pressure in ranges: 0.01~0.2Mpa (0.1~2kg/cm2); 0.05~0.7Mpa (0.5~7kg/cm2)
Operating temperature: -5 to 60℃
Diaphragm material: Viton with PTFE lining
Body material: SS316L
Seat material: Viton
Effective flow area: 4.0 mm
Process connection: 1/4"NPT female
Two gauge connection ports are: 1/4"NPT female
CV: 0.35
Catalogs
