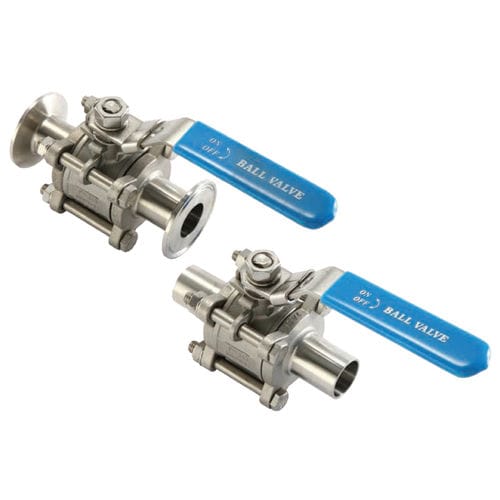

Ball valve N_3Hleverfor chemicalsweld
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Media
- for chemicals
- Body
- weld
- Applications
- clamp, sanitary
- Material
- stainless steel
- Other characteristics
- locking
- DN
Max.: 4 in
Min.: 0.5 in
- Pressure
600 psi, 800 psi, 1,000 psi
- Temperature
Max.: 175 °C
(347 °F)Min.: -5 °C
(23 °F)
Description
N-3H-B: Butt weld ends
N-3H-C: T-Clamp
Technical Data
Full Port, 3 piece type-Inside port finish Ra≦ 0.4
Material: Wetted parts ASTM A351 CF8M / 316
Connection Size: 1/2"(15mm), 3/4"(20mm), 1"(25mm), 1-1/2"(40mm), 2"(50mm), 2-1/2"(65mm), 3"(80mm), 4"(100mm)
Connection Type: Clamp & Tube butt weld ends available
Locking Device: Valve operated locking in open or closed position
Working Temperature Limited: -20℉~350℉ (-5℃~175℃)
Working Pressure Limited: 1000psi (70kg/cm2) for 1/2"~1"; 800psi (56kg/cm2) for 1-1/2"~2"; 600psi (42kg/cm2) for 2-1/2"~4"
Valves inspected and tested according to API 598 standard.
Catalogs
N_3H
1 Pages
