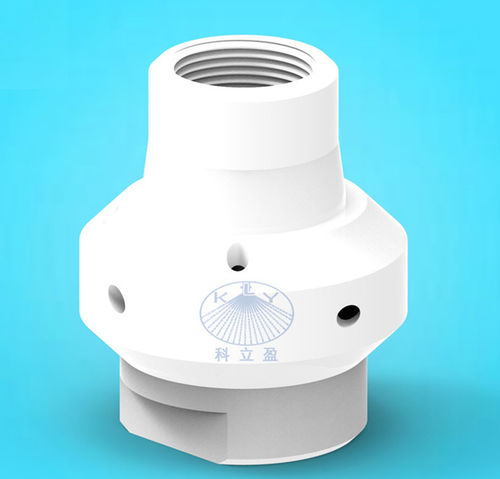

spray nozzle / cleaning / for liquids / solid-stream spray
DN series Guangzhou Cleaning Spray Equipment

{{requestButtons}}

Characteristics

  • Function:

    spray, cleaning

  • Media:

    for liquids

  • Stream:

    solid-stream spray

  • Material:

    PTFE

  • Applications:

    for tanks, chemical

  • Other characteristics:

    threaded, rotating, low-pressure

Description

Material :TEFLON

Spray angle: 360° , 180° on request

Connection BSPP:3/8",1/2", 3/4", 1",2", and 3"

MOQ:1pcs

Improved design for even better clening results





Design feature:


The reactionary force of the cleaning liquid rotates the Model Keliying PTFE 360 degree rotary nozzle . When combining the nozzle's multiple solid stream orifice configuration, and this rotating motion, a solid stream spray for quick and effective automated cleaning of tanks,vessels,containers,and equipment is produced. Since no external power source is required to rotate the nozzles. They are especially well suited for clean-in-place systems. 100% Keliying PTFE 360 degree rotary nozzle offer exceptional performance in low-pressure cleaning and rising applications.



Constructed of TEFLON(PTFE)

fluoropolymer resin making them perfect for use in harsh chemical and corrosive environments.



Maximum operating temperature of 200°F(93°C)

Spray angles range from 180° to 360°

1/2", 3/4", 1",2", and 3" threaded inlet connections(NPT or BSPP)

Flow rates range from 4 to 391 gpm(15 to 1480l/min)

Pressures range from 10 to 50 psi(.7 to 3.5 bar)
